Wall guards for corridors that never rest.
Rigid vinyl covers on continuous aluminium retainers that take the bed, trolley and cart impact a corridor sees every hour — in faces from 29 mm to 200 mm, solid colours and woodgrains, fire-rated and cleanable with hospital disinfectants. Supplied and installed across the UAE by Bluedge, the authorised Inpro / IPC distributor.
Crash rails · handrail · corner guards
Choose the face height for the impact
Low profiles for light-contact corridors, 100–150 mm faces for bed and trolley routes, 200 mm for heavy service areas. Click a model for its full specification; every model is quoted and installed by Bluedge.
- 102 mm face · extends 25 mm from wall
- EN 15102 Class B-s2,d0
- Solid colours, woodgrains, metallics
Wall Guard — 102 mm
The most-specified Inpro wall guard in UAE healthcare: 102 mm face, 2 mm vinyl, EN-tested.
- 103 mm face · 48 mm stand-off
- Bed-transfer and ED routes
- Solid colours, woodgrains, metallics
Wall Guard — 103 mm, 48 mm stand-off
Stands 48 mm off the wall so beds and trolleys are stopped before anything else touches the finish.
- 127 mm face · extends 25 mm
- Mixed trolley and wheelchair routes
- ASTM F 476 system impact
Wall Guard — 127 mm
A 127 mm face for corridors that need more coverage than the 1400 without going to a 150 mm profile.
- 152 mm face · extends 25 mm
- Main hospital circulation
- Accent strip option (1655)
Wall Guard — 152 mm
152 mm face with an optional 81 mm accent strip — the rail for wide corridors and heavy bed traffic.
- 197 mm face · 25 or 48 mm stand-off
- Service corridors, bed routes
- Black reveals at caps and corners
Wall Guard — 197 mm
Near-200 mm face with black reveals and optional moulded brackets for a 48 mm stand-off.
- 200 mm face · extends 27 mm
- Non-PVC cover material
- PVC-free specifications
Wall Guard — 200 mm, non-PVC
200 mm face in Inpro's non-PVC cover material for projects with PVC-free material requirements.
- 102 mm face · extends 25 mm
- Architectural flat profile
- Lobbies, waiting areas, hotels
Wall Guard — 102 mm, flat profile
Same 102 mm coverage as the 1400 with a flatter, more architectural profile.
- 76 mm face · extends 25 mm
- Schools, clinics, offices
- Pairs with handrails
Wall Guard — 76 mm
A 76 mm face for lighter-traffic corridors, schools and clinics.
- 29 mm face
- Chair-rail and worktop lines
- Solid colours and woodgrains
Crash Rail — 29 mm
A 29 mm bumper strip for chair rails, worktop edges and light-contact lines.
- 102 mm face · 83 mm stand-off
- 6.4 mm solid aluminium
- Loading, stores, back-of-house
Aluminium Wall Guard — 102 mm
A 6.4 mm solid aluminium rail standing 83 mm off the wall for industrial and back-of-house duty.
- 76 or 102 mm heights
- 2.5 mm clear polycarbonate
- Feature walls, graphics, panelling
Clear Wall Guard — 76 / 102 mm
A 2.5 mm clear polycarbonate guard that protects feature walls and graphics without hiding them.
Wall Guard — 102 mm
The 1400 is the corridor standard — a 102 mm (4") face that sits at trolley and bed-bumper height, on a continuous 2 mm aluminium retainer. The 1455 adds a 64 mm accent strip for a two-tone or woodgrain band. The UK/EN-tested version carries EN 15102 Class B-s2,d0 fire performance for European-style specifications.
Product details
- 102 mm (4") of wall protection, extends 25 mm (1") from the wall
- Optional rubber spacer extends a further 13 mm (½")
- Mounted on a 2 mm (0.080") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- 1455 model: 64 mm (2½") high accent strip in any woodgrain or metallic
- Manufactured in 3.66 m (12') standard lengths; all fixings included
Options & finishes
- 1400 — all standard Inpro solid colours; selected woodgrains and metallics
- 1455 — solid colours with accent strip in any woodgrain or metallic
- Matching end caps, inside and outside corners
Testing & certification
Wall Guard — 103 mm, 48 mm stand-off
The 1300 is the bed-transfer rail: a 103 mm face that stands a full 48 mm proud of the wall, so the rail — not the paint, the door frame or the equipment — takes the hit. It is also the base profile of the Inpro bed locator range.
Product details
- 103 mm (4 1⁄16") of wall protection, extends 48 mm (1 7⁄8") from the wall
- Optional rubber spacer extends a further 13 mm (½")
- 2 mm (0.080") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- 3.66 m (12') standard lengths; all fixings included
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Matching end caps, inside and outside corners
- 3.66 m standard lengths, cut on site
Testing & certification
Wall Guard — 127 mm
Specify the 1500 where bumper heights vary — mixed trolley fleets, wheelchairs and beds on the same route. The 1500FV is the factory-vented version for retro-fit over existing finishes.
Product details
- 127 mm (5") of wall protection, extends 25 mm (1") from the wall
- 2 mm (0.080") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- System impact resistance tested to ASTM F 476-84
- 3.66 m (12') standard lengths; all fixings included
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Matching end caps, inside and outside corners
- 3.66 m standard lengths, cut on site
Testing & certification
Wall Guard — 152 mm
The 1600 covers 152 mm of wall in one rail, which is why it is the usual choice for main hospital circulation, bed-lift lobbies and imaging corridors. The 1655 adds an 81 mm accent strip for a woodgrain band that keys the rail into the interior.
Product details
- 152 mm (6") of wall protection, extends 25 mm (1") from the wall
- Optional rubber spacer extends a further 13 mm (½")
- 2 mm (0.080") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- 1655 model: 81 mm (3 3⁄16") high accent strip
- System impact resistance tested to ASTM F 476-84
- 3.66 m (12') standard lengths; all fixings included
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Matching end caps, inside and outside corners
- 3.66 m standard lengths, cut on site
Testing & certification
Wall Guard — 197 mm
The 700 is the heavy end of the vinyl range: 197 mm of coverage, black reveals at caps and corners, and optional moulded brackets that push the rail 48 mm off the wall for bed-bumper duty. The 700W is the woodgrain version.
Product details
- 197 mm (7¾") of wall protection, extends 25 mm (1") from the wall
- Optional rubber spacer (+13 mm) or moulded brackets for a 48 mm (1 7⁄8") stand-off
- 2 mm (0.080") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- Black reveals for end caps and corners
- System impact resistance tested to ASTM F 476-84
- 3.66 m (12') standard lengths; all fixings included
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Matching end caps, inside and outside corners
- 3.66 m standard lengths, cut on site
Testing & certification
Wall Guard — 200 mm, non-PVC
The 1800 gives the widest single-rail coverage in the vinyl family — 200 mm — with a non-PVC cover for projects specifying PVC-free interiors (LEED, WELL and healthcare sustainability frameworks). It fixes on the same 2 mm aluminium retainer system as the rest of the range.
Product details
- 200 mm (8") of wall protection, extends 27 mm (1 1⁄16") from the wall
- 2 mm (0.080") non-PVC cover
- 2 mm (0.080") continuous aluminium retainer
- 3.66 m (12') standard lengths; all fixings included
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Matching end caps, inside and outside corners
- 3.66 m standard lengths, cut on site
Testing & certification
Wall Guard — 102 mm, flat profile
The 5000 is the designer's 100 mm rail — a flatter face and crisper edge for lobbies, waiting areas and hotel corridors where the 1400's rounded profile reads too clinical, with identical retainer, fixings and performance.
Product details
- 102 mm (4") of wall protection, extends 25 mm (1") from the wall
- Optional rubber spacer extends a further 13 mm (½")
- 2 mm (0.080") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- 3.66 m (12') standard lengths; all fixings included
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Matching end caps, inside and outside corners
- 3.66 m standard lengths, cut on site
Testing & certification
Wall Guard — 76 mm
Where impact is from bags, chairs and wheelchairs rather than beds, the 500 protects the contact line at lower cost and with a lighter visual weight — often paired with a handrail above it.
Product details
- 76 mm (3") of wall protection, extends 25 mm (1") from the wall
- Optional rubber spacer extends a further 13 mm (½")
- 2 mm (0.080") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- 3.66 m (12') standard lengths; all fixings included
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Matching end caps, inside and outside corners
- 3.66 m standard lengths, cut on site
Testing & certification
Crash Rail — 29 mm
The 200 is the slimmest rail in the family — a 29 mm bumper used as a chair rail behind seating, at worktop height in treatment rooms, or as a secondary line beneath a wider guard. Same retainer-and-cover construction, same colour palette.
Product details
- 29 mm (1 1⁄8") of impact-resistant wall protection
- 2 mm (0.080") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- 3.66 m (12') standard lengths; all fixings included
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Matching end caps, inside and outside corners
- 3.66 m standard lengths, cut on site
Testing & certification
Aluminium Wall Guard — 102 mm
When the impact is from pallet trucks and roll cages rather than beds, the 50AA replaces vinyl with a 6.4 mm solid aluminium rail on stand-off brackets — 83 mm from the wall — in a clear anodised finish. Field-cut to length on site.
Product details
- 102 mm (4") of wall protection, extends 83 mm (3¼") from the wall
- 6.4 mm (¼") thick aluminium rail on stand-off brackets
- Manufactured in 3.66 m (12') lengths, field-cut on site
- All mounting fasteners included
Options & finishes
- Clear anodised finish
Testing & certification
Clear Wall Guard — 76 / 102 mm
For printed murals, timber panelling and feature finishes that need protecting but must stay visible, the clear wall guard adds a 2.5 mm transparent bumper line in 76 mm or 102 mm heights.
Product details
- 2.5 mm (0.100") thick clear guard
- 76 mm (3") or 102 mm (4") heights
- Manufactured in 2.44 m (8') standard lengths
- Easy installation, clean-up and maintenance
Options & finishes
- Clear finish only
Testing & certification
Solid colours, woodgrains and metallics
Every vinyl wall guard comes in the full standard Inpro solid-colour palette, with selected woodgrains and metallics for front-of-house areas. The same finish runs across corner guards, handrails and sheet trims so the corridor reads as one design.
Nature Maple
Santa Rosa Oak
Beechnut
Chatsworth Oak
Honey Nut
Amber Cherry
Hazelwood
Washed Walnut
American Walnut
Coffee Bean
Barrel Oak
Ashwood Plank
Brushed Silver
Antique Nickel
Tungsten
OnyxSpecifying wall guards in the UAE
How we lay out the rails on a typical healthcare or institutional project.
Put the rail where the impact lands
Beds, trolleys and wheelchairs each strike the wall at a different height. We survey the fleet in use, then set a 102–152 mm rail at the dominant bumper line — typically 750–950 mm to centre — and add a second rail or a handrail where heights overlap.
- 1400 · 1600
- Bed-transfer routes
- Site survey
Two rails beat one wide one on busy routes
On ED, imaging and bed-lift corridors a stacked pair — a 1300 at bed-bumper height over a 500 or 200 at trolley height — covers both contact lines and leaves the wall between them clean and cleanable.
- 1300 + 500
- ED and imaging
- Lift lobbies
Woodgrains and accent strips for public areas
Reception, outpatient and hotel corridors get the same protection in a finish the interior designer chose: a 1455 or 1655 with a woodgrain accent, or a full woodgrain cover matched to the handrail and corner guards.
- 1455 · 1655
- Woodgrain covers
- Matching handrails

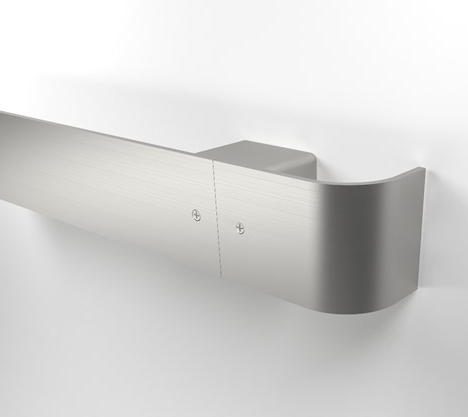

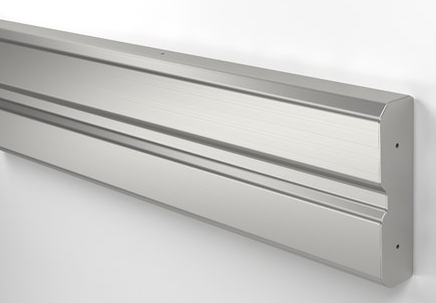

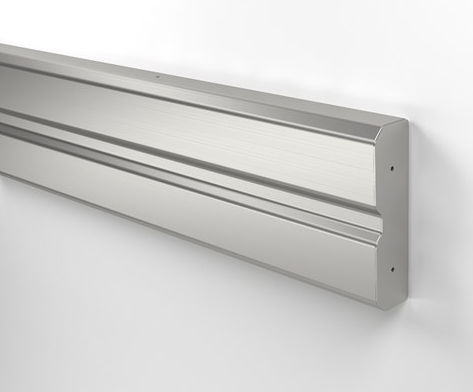

Switch to aluminium or stainless where trolleys are heavier
Kitchens, CSSD, loading areas and service lifts punish vinyl. We move to the 50AA solid aluminium rail or to the stainless steel range on those routes — same supplier, one coordinated package.
- 50AA
- Stainless steel
- Service corridors
Compare the wall guard profiles
Face height, stand-off and construction for every model on this page.
| Model | Impact | Face height | Stand-off from wall | Construction | Typical use |
|---|---|---|---|---|---|
| 200 | Light | 29 mm | Surface | 2 mm vinyl on 2 mm aluminium retainer | Chair rails, worktop lines |
| 500 | Medium | 76 mm | 25 mm (+13 mm spacer) | 2 mm vinyl on 2 mm aluminium retainer | Schools, clinics, offices |
| 1400 / 1455 | High | 102 mm | 25 mm (+13 mm spacer) | 2 mm vinyl on 2 mm aluminium retainer; EN 15102 B-s2,d0 | Hospital corridors — the UAE standard |
| 5000 | High | 102 mm | 25 mm (+13 mm spacer) | Flat-profile vinyl on aluminium retainer | Lobbies, hotels, waiting areas |
| 1300 | High | 103 mm | 48 mm (+13 mm spacer) | 2 mm vinyl on 2 mm aluminium retainer | Bed-transfer routes, ED |
| 1500 | High | 127 mm | 25 mm | 2 mm vinyl on 2 mm aluminium retainer | Mixed trolley and wheelchair routes |
| 1600 / 1655 | High | 152 mm | 25 mm (+13 mm spacer) | 2 mm vinyl on 2 mm aluminium retainer | Main circulation, imaging, lift lobbies |
| 700 / 700W | Very high | 197 mm | 25 or 48 mm (brackets) | 2 mm vinyl, black reveals | Service corridors, bed routes |
| 1800 | Very high | 200 mm | 27 mm | 2 mm non-PVC cover on aluminium retainer | PVC-free specifications |
| 50AA | Very high | 102 mm | 83 mm | 6.4 mm solid aluminium, clear anodised | Loading, stores, industrial |
| Clear | Medium | 76 / 102 mm | Surface | 2.5 mm clear polycarbonate | Feature walls and graphics |
Dimensions are indicative ranges from the Inpro / IPC catalogue; exact sizes, colours and fire-performance data are confirmed in the technical data sheet for each model, available from Bluedge on request.
Send the corridor schedule — we do the rest.
Lengths, bumper heights and finishes are all we need to return a priced wall guard package with metric data sheets for your submittal.
- Metric technical data sheets for each model
- Specification clauses and CAD details
- Colour and woodgrain samples
- Site survey of bumper heights and lengths
- Fire, chemical and cleaning documentation
- Installation by Bluedge teams or supply only
Wall guards — common questions
What UAE consultants, FM teams and contractors ask before they specify.
Which Inpro wall guard is the standard for a UAE hospital corridor?
The 1400 (102 mm face) is the most-specified model, set at trolley and bed-bumper height; the 1600 (152 mm) is used on main circulation and imaging corridors, and the 1300 (48 mm stand-off) on bed-transfer routes. Most projects combine two profiles with a handrail and corner guards. Send us the corridor schedule and we will recommend the layout.
At what height should a crash rail be mounted?
It depends on the equipment in use. Hospital beds and trolleys typically strike between 750 mm and 950 mm to centre; wheelchairs lower. Bluedge surveys the fleet on site and sets the rail (or a stacked pair) to the dominant contact line, so the rail takes the impact rather than the wall finish.
Are Inpro wall guards fire-rated for UAE projects?
Yes. The vinyl range is Class A to ASTM E-84 / UL 723 and self-extinguishing to ASTM D-635; the 1400 is additionally tested to EN 15102 Class B-s2,d0 for European-style specifications. Model-specific certificates are issued with the technical data sheet for your authority submittal.
Can the wall guards be cleaned with hospital disinfectants?
The rigid vinyl cover is tested for chemical and stain resistance (ASTM D-543 / BS EN ISO 175) and does not support bacterial or fungal growth (ASTM G-21/G-22, BS EN ISO 846). Standard hospital cleaning regimes, including chlorine-based disinfectants, are suitable; a cleaning guide is supplied with every order.
Which colours and woodgrains are available?
All standard Inpro solid colours on every vinyl model, with selected woodgrains and metallics on most. End caps, corners and accent strips match, and the same finish is available across corner guards, handrails and rigid sheet trims. Physical samples are provided before ordering.
Can the rails be fitted to existing walls in an operating hospital?
Yes. The aluminium retainer fixes to plasterboard, blockwork or concrete with the supplied fasteners (and anchors where needed); covers snap on afterwards, so work is quick and clean. Bluedge installs in phases around live wards and night shifts, or supplies with installation guidance for your contractor.
Do you supply wall guards in Dubai and the Northern Emirates?
Bluedge is based in Abu Dhabi and supplies and installs across all seven emirates, with selected GCC projects. Supply-only, supply and install, or supply with installation supervision are all available.
More Inpro / IPC wall protection from Bluedge
Corner guards
Surface-mount, flush, fire-rated and stainless
Explore
Handrails
Graspable rails with integrated wall protection
Explore
Rigid sheets & door protection
Sheets, trims, kick plates and frame guards
Explore
Stainless steel wall guards
Grade 304 crash rails for back-of-house
Explore

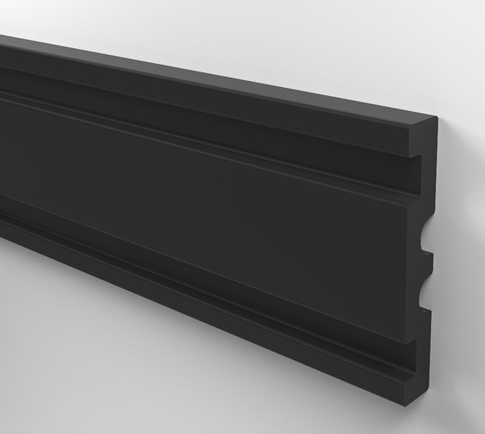

Rubber & car park protection
Dock bumpers, rubber guards, column protection
ExploreOver 30 years protecting UAE healthcare, hospitality and commercial interiors. Authorised distributor for Inpro / IPC door & wall protection in the United Arab Emirates — supply only, or supply and install with our own teams.
Door & wall protection
Also from Bluedge
Wall Guards & Crash Rails in UAE
INPRO x Wall Guards
Inpro Wall guards are amongst the highest in quality standards. We provide our customers a wide range of wall guards that are specifically designed to protect your healthcare centers and educational institutes.
Our wide range of material types has been designed and developed with the end-user in mind. Inpro provides its customers with durable and aesthetically-pleasing finishes.
Inpro Handrails come in a variety of finishes ranging from Stainless Steel to their in-house developed G2 BioBlend®.
High Impact Wall Guards
200 Wall Guard
FEATURES: Anti-Bacterial, Anti-Fungal, Anti-Scratch, Limited Lifetime Warranty.
COVERAGE : 29mm Height
PROJECTIONS: 29mm From Wall.
LENGTH: 3.66 meter profiles
FINISHES: Solid Colors & Wood Finish
1600 Wall Guard
FEATURES: Anti-Bacterial, Anti-Fungal, Anti-Scratch, Limited Lifetime Warranty.
COVERAGE : 153mm Height
PROJECTIONS: 26mm From Wall.
LENGTH: 3.66 meter profiles
FINISHES: Solid Colors & Wood Finish, Solid Colors + Wood Inserts
FEATURES: Anti-Bacterial, Anti-Fungal, Anti-Scratch, Limited Lifetime Warranty.
COVERAGE : 101mm Height
PROJECTIONS: 16mm From Wall.
LENGTH: 3.66 meter profiles
FINISHES: Solid Colors & Wood Finish, LED LIGHTS
500 Wall Guard
FEATURES: Anti-Bacterial, Anti-Fungal, Anti-Scratch, Limited Lifetime Warranty.
COVERAGE : 76mm Height
PROJECTIONS: 25mm From Wall.
LENGTH: 3.66 meter profiles
FINISHES: Solid Colors & Wood Finish
400 Wall Guard
1300 Wall Guard
FEATURES: Anti-Bacterial, Anti-Fungal, Anti-Scratch, Limited Lifetime Warranty.
COVERAGE : 103mm Height
PROJECTIONS: 48mm From Wall.
LENGTH: 3.66 meter profiles
FINISHES: Solid Colors & Wood Finish
1500 Wall Guard
FEATURES: Anti-Bacterial, Anti-Fungal, Anti-Scratch, Limited Lifetime Warranty.
COVERAGE : 127mm Height
PROJECTIONS: 25mm From Wall.
LENGTH: 3.66 meter profiles
FINISHES: Solid Colors & Wood Finish
1800 Wall Guard
FEATURES: Anti-Bacterial, Anti-Fungal, Anti-Scratch, Limited Lifetime Warranty.
COVERAGE : 200mm Height
PROJECTIONS: 27mm From Wall.
LENGTH: 3.66 meter profiles
FINISHES: Solid Colors & Wood Finish,
1400 Wall Guard
FEATURES: Anti-Bacterial, Anti-Fungal, Anti-Scratch, Limited Lifetime Warranty.
COVERAGE : 102mm Height
PROJECTIONS: 25mm From Wall.
LENGTH: 3.66 meter profiles
FINISHES: Solid Colors & Wood Finish, Solid Colors + Wood Inserts
5000 Wall Guard
FEATURES: Anti-Bacterial, Anti-Fungal, Anti-Scratch, Limited Lifetime Warranty.
COVERAGE : 100mm Height
PROJECTIONS: 23mm From Wall.
LENGTH: 3.66 meter profiles
FINISHES: Solid Colors & Wood Finish,
