Every exposed corner, covered.
Corners take the first hit in any building. The Inpro range runs from low-profile tape-on guards to retainer-mounted high-impact systems, stainless steel for kitchens and loading areas, and heavy-duty rubber for car parks — 51 mm and 76 mm wings, 90° and 135° angles, any height up to floor-to-ceiling. Supplied and installed across the UAE by Bluedge.
High-impact corner guards
From tape-on to retainer-mounted
Surface-mount high-impact guards for corridors and wards, flush and fire-rated versions for walls that need a clean line or a rated assembly, metals and rubber where the knocks are heavier. Click a model for its full specification.
- 51 mm wings · 90°
- Aluminium retainer + snap-on cover
- Standard heights to 3.66 m
High-Impact Corner Guard — 51 mm wing, 90°
The most-specified Inpro corner guard: 51 mm wings on a continuous aluminium retainer, 2 mm vinyl cover.
- 76 mm wings · 90°
- Columns and wide reveals
- Standard heights to 3.66 m
High-Impact Corner Guard — 76 mm wing, 90°
The 160's bigger brother: 76 mm wings for columns, wide reveals and heavier trolley traffic.
- 76 mm wings · 135°
- Splayed corners and chamfers
- Retainer + snap-on cover
High-Impact Corner Guard — 76 mm wing, 135°
The 135° version for splayed corridors, angled reception desks and chamfered columns.
- 76 mm wings · bullnose
- Rounded plasterboard corners
- 1.22 / 2.44 / 2.74 / 3.66 m heights
Bullnose High-Impact Corner Guard — 76 mm
For bullnose (rounded) plasterboard corners — a curved high-impact guard on a pre-slotted retainer.
- 51 mm wings · 90°
- Vinyl retainer, flexible apex
- Quick-ship heights and colours
BluNose High-Impact Corner Guard — 51 mm
A vinyl retainer with a flexible apex that is four times stronger than aluminium and kinder to the wall.
- 51 mm wings · flush-mounted
- Built in before plastering
- All colours, woodgrains and metallics
Flush-Mount Corner Guard — 51 mm
Set into the plaster so the cover sits flush with the wall — protection without a visible step.
- 51 mm wings · 90°
- One- and two-hour rated assemblies
- UL classified, NFPA Class A
Fire-Rated Corner Guard — 51 mm
A corner guard engineered for one- and two-hour fire-rated wall assemblies with UL classification.
- Wraps partition ends
- Two guards + 1 mm bridging sheet
- Custom widths and heights
High-Impact End-Wall Protector — 51 mm
Two surface-mount corner guards joined by sheet material to wrap a partition end or short column.
- 51 mm wings · 90°
- Non-PVC cover and recycled retainer
- PVC-free specifications
G2 BioBlend Corner Guard — 51 mm, non-PVC
Inpro's PETG-biopolymer cover on a recycled retainer for PVC-free specifications.
- 38 / 51 / 89 mm wings
- Type 304 (NSF 51) or 430
- No. 4 satin; screw-on or cement-on
Stainless Steel Corner Guard — surface mount
Type 304 or 430 stainless steel in 38, 51 or 89 mm wings; screw-on or cement-on.
- 51 / 76 mm wings · flush
- Floor-to-ceiling heights
- Kitchens, sanitation, high abuse
Stainless Steel Corner Guard — flush mount
Flush-set stainless steel for a smooth wall-to-corner transition in high-abuse areas.
- Wings 19 – 610 mm
- Angles 80° – 179°
- Black, bronze or clear anodised
Aluminium Corner Guard
Extruded aluminium in black, light bronze or clear anodised — wings from 19 mm to 610 mm, angles from 80° to 179°.
- 38 or 76 mm wings
- Factory-applied tape or adhesive
- Bullnose textured version
Tape-On Corner Guard — 38 / 76 mm, non-PVC
Factory-taped G2 BioBlend guards that fit in minutes — the fast fix for existing buildings.
- 19 / 29 / 64 mm wings
- 1.3 / 1.9 / 2.5 mm thick
- Screw or adhesive fixing
Clear Corner Guard — 19 / 29 / 64 mm
Transparent guards that let the wall colour or wallcovering show through.
- 19 or 38 mm wings · 90° / 135°
- ±10° adjustment
- Adhesive-fixed
Flexible Corner Guard — 19 / 38 mm
A 2.8 mm flexible vinyl guard that adjusts ±10° to out-of-square corners and absorbs knocks.
- High-impact Santoprene
- Car park columns, docks
- Interior and exterior
Heavy-Duty Rubber Corner Guard
High-impact Santoprene rubber for columns in car parks, loading docks and warehouses.
High-Impact Corner Guard — 51 mm wing, 90°
The 160 is the default corner guard on UAE hospital and school projects. A 1.8 mm continuous aluminium retainer is screwed to the corner and the 2 mm rigid vinyl cover snaps over it, so the cover can be replaced after years of impact without touching the wall. Top and bottom caps are included; the European version is tested to EN standards.
Product details
- 51 mm (2") wings with 90° corner protection
- Mounted on a 1.8 mm (0.070") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- Manufactured in 3.66 m (12') standard heights; cut to size on site
- All mounting fasteners and top and bottom caps included
- Impact strength 30.2 ft-lbs/inch (ASTM D-256)
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Colour-matched top and bottom caps included
- Custom heights and angles on request
Testing & certification

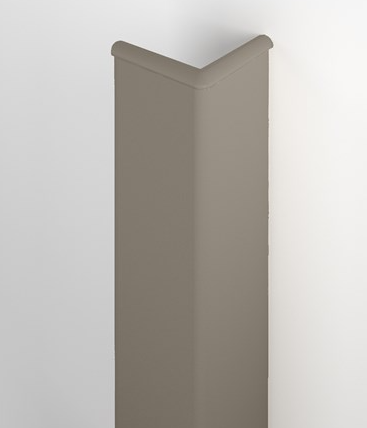

High-Impact Corner Guard — 76 mm wing, 90°
Choose the 150 where the 160's 51 mm wing is not enough — wide door reveals, structural columns and corridors with bed traffic. Same retainer-and-cover construction, same caps and fixings.
Product details
- 76 mm (3") wings with 90° corner protection
- Mounted on a 1.8 mm (0.070") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- Manufactured in 3.66 m (12') standard heights
- All mounting fasteners and top and bottom caps included
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Colour-matched top and bottom caps included
- Custom heights and angles on request
Testing & certification
High-Impact Corner Guard — 76 mm wing, 135°
Where the architecture turns at 135° rather than 90° — splayed corridor junctions, angled walls at reception, chamfered columns — the 130 provides the same high-impact protection with 76 mm wings.
Product details
- 76 mm (3") wings with 135° corner protection
- Mounted on a 1.8 mm (0.070") continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- Manufactured in 3.66 m (12') standard heights
- All mounting fasteners and caps included
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Colour-matched top and bottom caps included
- Custom heights and angles on request
Testing & certification
Bullnose High-Impact Corner Guard — 76 mm
Rounded corner beads need a rounded guard. The 170 follows a bullnose corner with a curved cover on a pre-slotted aluminium retainer, available in four standard heights and custom lengths, and system-impact tested to ASTM F 476.
Product details
- 76 mm (3") wings with bullnose corner protection
- Mounted on a 1.8 mm (0.070") pre-slotted continuous aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- Standard heights 1.22 m, 2.44 m, 2.74 m and 3.66 m; custom heights available
- All mounting fasteners and caps included
- System impact resistance tested to ASTM F 476-84
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Colour-matched top and bottom caps included
- Custom heights and angles on request
Testing & certification
BluNose High-Impact Corner Guard — 51 mm
The BluNose replaces the aluminium retainer with a 1.8 mm continuous vinyl retainer and a co-extruded flexible apex — four times the strength of the aluminium version according to Inpro, and it flexes with the impact rather than transferring it into the plasterboard. Quick-ship in standard heights and colours.
Product details
- 51 mm (2") wings with 90° corner protection
- 1.8 mm (0.070") continuous vinyl retainer with co-extruded Biopolymer Flex PVC apex
- Retainer four times stronger than the aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- Standard heights 1.22 m, 2.44 m, 2.74 m and 3.66 m; custom heights available
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Colour-matched top and bottom caps included
- Custom heights and angles on request
Testing & certification

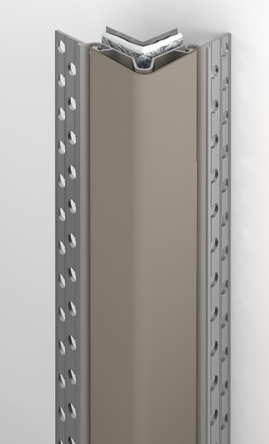

Flush-Mount Corner Guard — 51 mm
For interiors where a surface-mounted guard would read as an add-on, the 160F is built into the wall: a pre-punched aluminium retainer is fixed before plastering and the cover finishes flush. Available in every standard colour, woodgrain and metallic, with custom heights and angles.
Product details
- 51 mm (2") wings with 90° corner protection
- Pre-punched continuous aluminium retainer set flush into the wall
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- Standard heights 1.22 m, 2.44 m, 2.74 m and 3.66 m; custom heights and angles available
- All mounting fasteners included
Options & finishes
- All standard Inpro solid colours, woodgrains and metallics
- Custom heights and angles
Testing & certification
Fire-Rated Corner Guard — 51 mm
Where the corner sits in a fire-rated partition, the 160FR provides a UL-classified assembly with one- or two-hour ratings and NFPA Class A performance — so the wall protection does not compromise the rated construction. Every standard colour, woodgrain and metallic is available.
Product details
- 51 mm (2") wings with 90° corner protection on an aluminium retainer
- 2 mm (0.080") scratch- and stain-resistant rigid vinyl cover
- Standard heights 2.44 m, 2.74 m and 3.66 m; custom heights and angles available
- All mounting fasteners included
Options & finishes
- All standard Inpro solid colours, woodgrains and metallics
Testing & certification
High-Impact End-Wall Protector — 51 mm
The 160D wraps the whole end of a partition — two 51 mm corner guards on a pre-slotted retainer, bridged by 1 mm sheet material in the same colour — so corridor-end walls and short column faces get continuous protection.
Product details
- 51 mm (2") wings
- Two surface-mount corner guards with bridging sheet for end-wall protection
- Mounted on a 1.8 mm (0.070") pre-slotted continuous aluminium retainer
- 2 mm (0.080") rigid vinyl cover with 1 mm (0.040") sheet material
- Standard heights 1.22 m, 2.44 m, 2.74 m and 3.66 m; custom heights available
Options & finishes
- All standard Inpro solid colours
- Selected Inpro woodgrains and metallics
- Colour-matched top and bottom caps included
- Custom heights and angles on request
Testing & certification
G2 BioBlend Corner Guard — 51 mm, non-PVC
The G2 series answers PVC-free material requirements without giving up impact performance: a G2 BioBlend cover (PETG and biopolymer) on a recycled G2 BioBlend retainer, in every standard solid colour, with colour-matched caps.
Product details
- Non-PVC cover manufactured from G2 BioBlend (PETG and biopolymer), 2 mm (0.080")
- Recycled G2 BioBlend retainer
- Range of wing sizes, angles and heights to conceal existing damage
- Colour-coordinated top and bottom caps included
Options & finishes
- All standard Inpro solid colours
Testing & certification

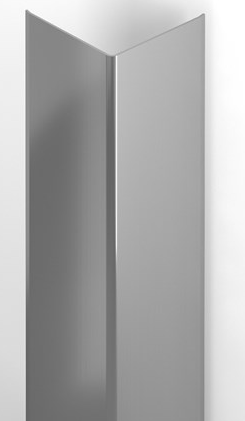

Stainless Steel Corner Guard — surface mount
For kitchens, CSSD, sanitation and loading areas the stainless steel corner guard is the long-term answer — Type 304 (NSF 51) or Type 430 in 14, 16 or 18 gauge, 38 mm, 51 mm or 89 mm wings, No. 4 satin finish, with custom wings, angles and heights available.
Product details
- Wings of 89 mm (3½"), 51 mm (2") or 38 mm (1½"); custom wing sizes and angles available
- Standard heights 1.22 m (4') and 2.44 m (8'); custom heights available
- Type 304 stainless (meets NSF Standard 51) in 16 gauge; 14 and 18 gauge available
- Type 430 stainless in 16 gauge; 14 and 18 gauge available
- Screw-on and cement-on installation
Options & finishes
- No. 4 satin finish
- Gold titanium and mirror finishes (custom)
Testing & certification

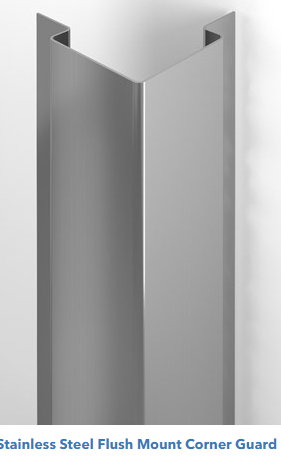

Stainless Steel Corner Guard — flush mount
The flush-mount stainless guard is built into the wall so the corner reads as one surface — minimum design interruption with maximum impact protection for kitchens, sanitation and other high-abuse areas. Typical wings 51 mm or 76 mm, floor-to-ceiling heights, screw-on installation.
Product details
- Smooth wall-to-corner transition with minimum design interruption
- Superior impact protection for kitchens, sanitation and other high-abuse areas
- Typical wing sizes 51 mm (2") or 76 mm (3"); floor-to-ceiling heights available
- Screw-on installation
Options & finishes
- No. 4 satin finish
- Custom wing and height sizes
Testing & certification
Aluminium Corner Guard
The aluminium corner guard is the custom-profile option: any wing from 19 mm to 610 mm, any angle from 80° to 179°, heights to 3.05 m, screw-on or cement-on, in three anodised finishes. Use it for odd angles, deep reveals and exterior-grade corners.
Product details
- Custom profile sizes: wings from 19 mm (¾") to 610 mm (24")
- Angles from 80° to 179°; 3 mm (1⁄8") corner radius
- Heights up to 3.05 m (120")
- Screw-on or cement-on installation
Options & finishes
- Black, light bronze or clear anodised finish
Testing & certification
Tape-On Corner Guard — 38 / 76 mm, non-PVC
For refurbishments and occupied buildings the tape-on guard is the quickest protection there is: a non-PVC G2 BioBlend cover with factory-applied adhesive tape, in 38 mm or 76 mm wings, or a no-tape version for heavy-duty adhesive on vinyl wallcoverings. A bullnose textured version covers rounded corners.
Product details
- Non-PVC cover manufactured from G2 BioBlend (PETG and biopolymer)
- Low-profile appearance with minimum design interruption
- 38 mm (1½") or 76 mm (3") wings; bullnose textured version for rounded corners
- Factory-applied adhesive tape for quick installation
- No-tape option for heavy-duty adhesive on vinyl wallcovering
Options & finishes
- All standard Inpro solid colours
Testing & certification
Clear Corner Guard — 19 / 29 / 64 mm
Where the corner carries a feature finish, the clear corner guard protects it without covering it — three wing sizes, three thicknesses, 90° and 135° options, screw-fixed through pre-drilled holes or adhesive-backed.
Product details
- Allows the existing wall colour or pattern to show through
- Wing sizes 19 mm (¾"), 29 mm (1 1⁄8") and 64 mm (2½")
- Thicknesses 1.3 mm, 1.9 mm and 2.5 mm
- Standard heights 1.22 m and 2.44 m; custom heights available
- Options: 51 mm wing 90°, 64 mm wing 90° bullnose, 64 mm wing 135°, adhesive-backed
Options & finishes
- Clear only
Testing & certification
Flexible Corner Guard — 19 / 38 mm
Not every corner is a true 90°. The flexible guard is made from Biopolymer Flex PVC, adjusts ±10° to the wall and is fixed with heavy-duty adhesive — ideal for refurbishments, nurseries and anywhere a hard edge is unwelcome.
Product details
- 19 mm (¾") or 38 mm (1½") wings in 90° and 135° styles
- Made from Biopolymer Flex PVC, 2.8 mm (0.110") thick
- Smooth satin finish; allows ±10° adjustment
- Standard heights 1.22 m, 2.44 m, 2.74 m and 3.66 m
- Installed with heavy-duty adhesive
Options & finishes
- All standard Inpro solid colours
Testing & certification
Heavy-Duty Rubber Corner Guard
For vehicle and pallet-truck impact, rubber beats vinyl. The heavy-duty rubber corner guard is moulded in high-impact Santoprene for car park columns, loading docks and plant rooms. See the full car park range on the rubber protection page.
Product details
- Moulded high-impact Santoprene rubber
- For car park columns, loading docks, warehouses and plant rooms
- Suitable for interior and exterior use
- Colour: black
Options & finishes
- Black
Testing & certification
Matched to the rest of the corridor
Vinyl corner guards share the Inpro palette with the wall guards, handrails and sheet trims on the same project — solid colours on every model, woodgrains and metallics on most.
Nature Maple
Beechnut
Chatsworth Oak
Honey Nut
Hazelwood
American Walnut
Coffee Bean
Barrel Oak
Brushed Silver
Antique Nickel
Tungsten
OnyxChoosing a corner guard by zone
The impact, the finish and the wall build-up decide the model.
Retainer-mounted guards on every corridor corner
In healthcare we fit the 160 (or the 150 on wide reveals) to every exposed corner on bed and trolley routes, full height or to 1.5 m depending on the traffic, with the cover colour matched to the crash rail. Snap-on covers mean a damaged guard is replaced in minutes, years later.
- 160 · 150
- Full height
- Replaceable covers
Tape-on and flexible guards for fast refurbishment
Where there is no shutdown window, tape-on and adhesive-fixed flexible guards protect corners without drilling, dust or downtime — the usual answer for clinics, schools and hotels in operation.
- G2 Tape-On
- Flexible
- No drilling
Stainless steel where hygiene and abuse meet
Commercial kitchens, CSSD and sanitation areas get Type 304 stainless guards — surface-mount or flush — that tolerate aggressive cleaning and trolley impact for decades.
- Type 304 · NSF 51
- Flush or surface
- No. 4 satin
Rubber on the columns, bumpers on the walls
Vehicle impact needs rubber. Heavy-duty Santoprene corner guards on columns, D- and E-profile rubber wall guards along the walls — the standard car park and loading dock package.
- HD Rubber
- DW-DOCK075
- DW-WALL200
Compare the corner guard systems
Wing sizes, construction and fixing for every model on this page.
| Model | Impact | Wings / angle | Construction | Fixing | Typical use |
|---|---|---|---|---|---|
| G2 Tape-On | Light | 38 / 76 mm · 90° or bullnose | Non-PVC G2 BioBlend cover | Factory tape or adhesive | Refurbishments, offices, hotels |
| Flexible | Light | 19 / 38 mm · 90° / 135° ±10° | 2.8 mm flexible vinyl | Heavy-duty adhesive | Out-of-square corners, nurseries |
| Clear | Medium | 19 / 29 / 64 mm · 90° / 135° | 1.3 – 2.5 mm clear polycarbonate | Screws or adhesive | Feature finishes |
| 160 | High | 51 mm · 90° | 2 mm vinyl on 1.8 mm aluminium retainer | Screwed retainer, snap-on cover | Hospital and school corridors — the standard |
| 150 | High | 76 mm · 90° | 2 mm vinyl on 1.8 mm aluminium retainer | Screwed retainer, snap-on cover | Columns, wide reveals |
| 130 | High | 76 mm · 135° | 2 mm vinyl on 1.8 mm aluminium retainer | Screwed retainer, snap-on cover | Splayed corners |
| 170 | High | 76 mm · bullnose | 2 mm vinyl on pre-slotted retainer | Screwed retainer, snap-on cover | Rounded plasterboard corners |
| 160BN | High | 51 mm · 90° | 2 mm vinyl on vinyl retainer, flexible apex | Screwed retainer, snap-on cover | Plasterboard, quick-ship |
| 160F | High | 51 mm · 90° | Flush-set aluminium retainer, 2 mm cover | Built in before plastering | Premium interiors |
| 160FR | High | 51 mm · 90° | UL-classified rated assembly | Screwed retainer, snap-on cover | 1- and 2-hour rated walls |
| 160D | High | 51 mm · end wall | Two guards + 1 mm bridging sheet | Screwed retainer | Partition ends, short columns |
| G2-160R | High | 51 mm · 90° | Non-PVC cover, recycled retainer | Screwed retainer, snap-on cover | PVC-free specifications |
| Stainless surface | Very high | 38 / 51 / 89 mm · custom | Type 304 / 430, 14–18 gauge | Screw-on or cement-on | Kitchens, CSSD, loading |
| Stainless flush | Very high | 51 / 76 mm · custom | Stainless steel, flush-set | Screw-on | High-abuse, clean-line interiors |
| Aluminium | Very high | 19 – 610 mm · 80° – 179° | Extruded aluminium, anodised | Screw-on or cement-on | Custom angles, exterior-grade |
| HD Rubber | Very high | Column profile | High-impact Santoprene | Mechanical fixing | Car parks, docks, plant rooms |
Dimensions are indicative ranges from the Inpro / IPC catalogue; exact sizes, colours and fire-performance data are confirmed in the technical data sheet for each model, available from Bluedge on request.
Count the corners — we'll do the schedule.
Tell us the number of corners, the wall build-up and the heights, and we return a priced corner guard package with data sheets for your submittal.
- Metric data sheets for each model
- Fire-rated assembly documentation (160FR)
- Colour, woodgrain and metallic samples
- Site survey and corner schedule
- Quick-ship options for occupied buildings
- Installation by Bluedge teams or supply only
Corner guards — common questions
What UAE consultants, FM teams and contractors ask before they specify.
Which corner guard should I specify for a hospital in the UAE?
The 160 (51 mm wings) is the standard on corridor and ward corners, with the 150 (76 mm) on columns and wide door reveals and the 130 on 135° corners. Kitchens, CSSD and loading areas switch to stainless steel. Send us the drawings and we will prepare a corner schedule.
What is the difference between surface-mount, flush-mount and tape-on corner guards?
Surface-mount guards (160, 150, 130, 170) screw a retainer to the finished corner and snap a cover over it — the strongest and most repairable option. Flush-mount (160F) builds the retainer into the wall before plastering so the cover finishes flush with the surface. Tape-on guards fix with factory-applied adhesive tape in minutes, for lighter duty and occupied buildings.
How high should corner guards be?
Full height (floor to ceiling) on bed, trolley and lift routes; otherwise 1.2 m to 1.5 m covers the impact zone of trolleys, wheelchairs and bags. Standard lengths are 1.22 m, 2.44 m, 2.74 m and 3.66 m, cut to size on site; custom heights are available.
Are the corner guards fire-rated?
Vinyl models are Class A to ASTM E-84 / UL 723 and the European versions carry EN test data. For corners inside one- or two-hour fire-rated partitions, specify the 160FR, which is UL-classified as part of the rated assembly. Certificates are issued with the data sheets for your authority submittal.
Can a damaged corner guard be repaired without replacing the whole unit?
Yes — on retainer-mounted models only the snap-on vinyl cover is replaced; the retainer stays on the wall. Bluedge keeps the common colours available for UAE projects so maintenance replacements are quick.
Do you have stainless steel corner guards for kitchens and loading areas?
Yes. Surface-mount stainless guards in Type 304 (NSF 51) or Type 430, in 38, 51 or 89 mm wings and 14–18 gauge, and flush-mount stainless guards for a seamless finish. Custom wings, angles and heights are available.
Which corner guards are suitable for car parks?
Heavy-duty rubber corner guards in Santoprene for columns, combined with rubber wall guards and dock bumpers along the walls. See the rubber and car park protection page for the full range.
More Inpro / IPC wall protection from Bluedge
Wall guards & crash rails
Vinyl crash rails and wall guards for corridors
Explore
Handrails
Graspable rails with integrated wall protection
Explore
Rigid sheets & door protection
Sheets, trims, kick plates and frame guards
Explore
Stainless steel wall guards
Grade 304 crash rails for back-of-house
Explore
Rubber & car park protection
Dock bumpers, rubber guards, column protection
ExploreOver 30 years protecting UAE healthcare, hospitality and commercial interiors. Authorised distributor for Inpro / IPC door & wall protection in the United Arab Emirates — supply only, or supply and install with our own teams.
Door & wall protection
Also from Bluedge
Corner Guard & Wall Edge Protection in UAE
Bluedge Structural Systems is the Authorized Partner to Inpro products in the Emirate of Abu Dhabi. Inpro is a USA-based company that specializes in the manufacturing of a variety of engineering products, one of them being the corner guard.
Material Type
Aluminum
Flexible Vinyl
G2 Bioblend®
Polycarbonate
Rigid Vinyl
Rubber
Stainless Steel
Height options
1 . 2 meters
2 . 4 meters
2 . 7 meters
3 . 6 meters
Color Options
Elements™ Patterns
Faux Metal
Standard Solid Colors
Woodlands™ Faux Wood
Woodland™ Faux Wood
Corner guard angle
135°
25-76°
90°
90° Bullnose
Low Impact Corner Guards
Tape-On CG
150 CG
TYPES: 150 High Impact Corner Guard
WING TIPS : 76mm x 76mm
ANGLES: 90° , 135° , and 90° bullnose - Custom angles available.
HEIGHTS: 1.22, 2.44, 2.74, and 3.66 meter - Custom heights available.
FINISHES: Solid Colors, Woodgrains, and patterns
TYPES: 130 Flush Corner Guard
WING TIPS : 76mm x 76mm
ANGLES: 135°
HEIGHTS: 1.22, 2.44, 2.74, and 3.66 meter - Custom heights available.
FINISHES: Solid Colors, Woodgrains, and patterns
Flexible CG
TYPES: 160 High Impact Corner Guard
WING TIPS : 51mm x 51mm
ANGLES: 90° , 135° , and 90° bullnose - Custom angles available.
HEIGHTS: 1.22, 2.44, 2.74, and 3.66 meter - Custom heights available.
FINISHES: Solid Colors, Woodgrains, and patterns
Bullnose CG
TYPES: Tape-On, Flexible, Aluminum and Clear Polycarbonate Corner Guards
WING TIPS : 19, 38, 51, and 76mm
ANGLES: 90° , 135° , and 90° bullnose - Custom angles available.
HEIGHTS: 1.22, 2.44, 2.74, and 3.66 meter - Custom heights available.
FINISHES: Solid Colours, Woodgrains, and patterns
130 Flush CG
High Impact Corner Guards
160 CG
150 Flush CG
TYPES: 150 Flush Corner Guard
WING TIPS : 76mm x 76mm
ANGLES: 90° , 135° , and 90° bullnose - Custom angles available.
HEIGHTS: 1.22, 2.44, 2.74, and 3.66 meter - Custom heights available.
FINISHES: Solid Colors, Woodgrains, and patterns
Rubber CG + Retainer
170 Bullnose
TYPES: 170 Bullnose Corner Guard
WING TIPS : 76mm x 76mm
ANGLES: 90° , 135° , and 90° bullnose - Custom angles available.
HEIGHTS: 1.22, 2.44, 2.74, and 3.66 meter - Custom heights available.
FINISHES: Solid Colors, Woodgrains, and patterns
TYPES: 160 Flush Corner Guard
WING TIPS : 51mm x 51mm
ANGLES: 90° , 135° , and 90° bullnose - Custom angles available.
HEIGHTS: 1.22, 2.44, 2.74, and 3.66 meter - Custom heights available.
FINISHES: Solid Colors, Woodgrains, and patterns
Stainless Steel
130 CG
TYPES: 130 High Impact Corner Guard
WING TIPS : 76mm x 76mm
ANGLES: 135°
HEIGHTS: 1.22, 2.44, 2.74, and 3.66 meter - Custom heights available.
FINISHES: Solid Colors, Woodgrains, and patterns
Flush Corner Guards
160 Flush CG
170 Flush CG
TYPES: 170 Flush Corner Guard
WING TIPS : 76mm x 76mm
ANGLES: 90° , 135° , and 90° bullnose - Custom angles available.
HEIGHTS: 1.22, 2.44, 2.74, and 3.66 meter - Custom heights available.
FINISHES: Solid Colors, Woodgrains, and patterns
Heavy Duty Corner Guards
EPDM Rubber CG
TYPES: Stainless Steel - EPDM Rubber - NuTree Recycled HDPE
WING TIPS : 38, 51 and 89mm stainless - 76 and 89m rubber - 29mm NuTree
FIXATION: Adhesive or screw-on.
HEIGHTS: 1.22 meter, 2.44 meter, and Custom heights available to 3.66 meter
FINISHES: Type 430 or 30 - 14 to 20 gauge - satin finish
