Door & wall protection for buildings that take a beating.
Bluedge is the authorised UAE distributor for Inpro / IPC wall protection: vinyl wall guards and crash rails, handrails, corner guards, rigid sheets and door protection, stainless steel wall guards and rubber car park protection — specified, supplied and installed by a team with 30+ years in UAE healthcare interiors.
Inpro / IPC · UAE
Six systems, one specification
Each family covers a different impact zone — from a patient-room corner to a loading-dock wall. Every page carries model ranges, metric specifications, finishes and a quotation builder.
Wall guards & crash rails
Rigid vinyl covers on continuous aluminium retainers that absorb trolley, bed and cart impact along corridors — in solid colours and woodgrains that suit front-of-house interiors.
- Faces
- 29 – 200 mm; stacked rails on bed routes
- Models
- 200, 500, 1300, 1400, 1500, 1600, 700, 1800, 5000, 50AA
- Best for
- Hospital and school corridors, bed-transfer routes
Handrails
Graspable 38 mm handrails with integrated wall protection — a continuous grip for patients and the elderly, with a bumper profile that takes the knocks behind it.
- Grips
- Vinyl, stainless steel, solid maple; oval and round
- Models
- 1000, 1200, 2000, 3100, 3500, 800, 900, HR9, LED, BH, bariatric
- Best for
- Patient corridors, care homes, rehabilitation

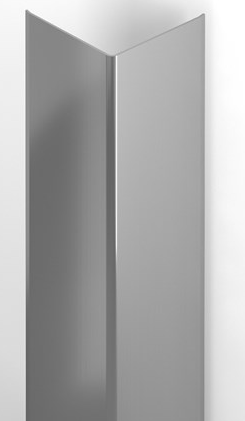

Corner guards
The most-hit point in any building. Tape-on, retainer-mounted high-impact, flush, fire-rated, stainless, aluminium, clear and rubber corner guards up to full wall height.
- Wings
- 19 – 89 mm; 90°, 135° and bullnose
- Models
- 130, 150, 160, 170, 160F, 160FR, 160D, G2, SS, AL, tape-on
- Best for
- Every exposed corner — wards, classrooms, service areas
Rigid sheets & door protection
Whole-wall protection — Palladium rigid vinyl, seamless Continuum, flexible Ricochet, printed Aspex and stainless panels — with kick plates, door-edge and frame guards for the doors.
- Sheets
- 1 – 2 mm; 1.22 × 2.44 / 3.05 m
- Systems
- Palladium, Continuum, Ricochet, Aspex, stainless, diamond plate
- Best for
- Behind beds, sluice, kitchens, labs, doors
Stainless steel wall guards
Satin-finish stainless crash rails and bumpers for service corridors, kitchens, loading areas and hotel back-of-house — where appearance has to survive daily trolley traffic.
- Faces
- 25 – 203 mm; bracket-mounted or direct-fix
- Models
- 21SS, 30SS, 31SS, 50SSH / 56SSH, 51SS, 52SS
- Best for
- Back-of-house, hospital service routes, airports
Rubber & car park protection
Santoprene rubber wall fenders and heavy-duty column corner guards for car parks, loading docks and warehouses, with stainless column covers and diamond plate for service walls.
- Profiles
- D-Fender 71 mm, E-Fender 203 mm; column guards
- Models
- DW-DOCK075, DW-WALL200, HD rubber, SS column covers
- Best for
- Car parks, docks, plant rooms, warehouses
One supplier for the whole corridor
Most UAE projects combine three or four of these systems. Bluedge coordinates colours, heights and junction details across families, prepares the technical submittal, and installs with its own team — so the wall guard, handrail and corner guard meet properly on site.
Request a package quoteWall protection by building type
Impact loads, hygiene demands and aesthetics differ between a children’s ward and a loading dock. Pick your building type to see the systems and zones we typically specify in the UAE.
Hospital wall protection
Healthcare corridors see continuous bed, trolley and wheelchair traffic, with strict cleaning regimes on top. The standard UAE hospital specification layers a crash rail at bumper height, a handrail for patients, corner guards on every exposed edge and rigid sheet where walls take splashes or repeated contact.
Recommended systems
Selected UAE healthcare references
Schools, nurseries & universities
Education buildings combine high footfall with bags, furniture and bicycles at low heights. Durable, colourful wall guards and corner guards keep corridors looking new between repaint cycles, while rigid sheets protect canteen and laboratory walls that are cleaned daily.
Recommended systems
Airports, metro & transport facilities
Baggage trolleys, cleaning machines and 24-hour operation demand the hardest-wearing systems in the range. Stainless steel crash rails and heavy-duty corner guards on service routes, with vinyl systems and rigid sheets in passenger-facing corridors.
Recommended systems
Hotels, shopping malls & retail
Front-of-house needs protection that disappears into the interior scheme — wood-finish wall guards and handrails. Back-of-house, housekeeping and room-service trolleys punish service corridors and lift lobbies, where stainless steel pays for itself quickly.
Recommended systems
Car parks, loading docks & plant rooms
Vehicle and pallet-truck impact calls for the heaviest profiles, robust fixings and finishes that shrug off diesel, water and abrasion. We specify rubber fenders and column guards, stainless steel rails and bumpers, and diamond plate where walls are scraped.
Recommended systems
Compare the six families
A quick way to shortlist. Impact ratings are relative across the range; detailed metric specifications and finishes are on each family page.
| System | Impact | Materials & finishes | Typical sizes | Mounting | Best suited to |
|---|---|---|---|---|---|
| Vinyl wall guards & crash rails | High | Rigid vinyl cover on continuous aluminium retainer; solid colours and woodgrains | 29 – 200 mm faces; 3.66 m lengths | Screwed retainer, snap-on cover | Hospital and school corridors, bed-transfer routes |
| Handrails & combined crash rails | High | Vinyl, maple or stainless grip; integral bumper profiles | 38 mm grip; 110 – 200 mm systems | Brackets or continuous retainer | Patient corridors, care homes, rehabilitation |
| Corner guards | Low – very high | Tape-on, vinyl on aluminium retainer, stainless, aluminium, rubber | 19 – 89 mm wings; 90°, 135°, bullnose | Tape, adhesive or screwed retainer | Every exposed corner, columns, door reveals |
| Rigid sheets & door protection | High | Rigid vinyl, Continuum, Ricochet, Aspex, stainless; kick plates and edge guards | 1 – 2 mm; 1.22 × 2.44 / 3.05 m | Adhesive-bonded; screw or adhesive door hardware | Behind beds, sluice, kitchens, labs, doors |
| Stainless steel wall guards | Very high | Grade 304, No. 4 satin; rubber-cushioned brackets | 25 – 203 mm faces | H-bracket stand-off or direct fix | Back-of-house, airports, service corridors |
| Rubber & car park protection | Vehicle | Santoprene rubber; stainless and aluminium panels | 71 / 203 mm fenders; column guards | Mechanical anchors to concrete | Car parks, loading docks, plant rooms |
Dimensions are indicative ranges from the Inpro / IPC catalogue; exact sizes, colours and fire-performance data are on each family page and in the technical data sheets, available from Bluedge on request.
Why specify Inpro / IPC through Bluedge
Genuine product, local accountability
Factory-correct profiles, retainers and colour matches, with Bluedge as your single point of contact for submittals, samples, delivery and after-sales in the UAE.
Hospital specification is our home ground
Decades of wall protection packages in Abu Dhabi, Al Ain and Dubai healthcare facilities mean we already know the infection-control, fire and authority requirements your project will meet.
Measured, delivered and fitted properly
Site measurement, shop drawings, junction details and installation by Bluedge crews — or supply-only with installation guidance for your contractor. ISO-certified, ICV-registered, ADNOC and civil-defence approved.
Specifying wall protection for a UAE project? We prepare the package.
Tell us the building type and the areas to protect; we respond with the right systems, metric data sheets and a budget.
- Metric technical data sheets for each model
- Specification clauses and CAD / BIM details
- Colour and woodgrain samples
- Site measurement and quantity take-off
- Fire-performance and cleaning documentation
- Installation method statements
Door & wall protection — common questions
Answers to the questions architects, FM teams and contractors in the UAE ask most often.
What is door and wall protection, and where is it required?
Door and wall protection is a family of products — wall guards, crash rails, handrails, corner guards, rigid sheets, kick plates and door-edge guards — fixed to interior walls and doors to absorb impact from beds, trolleys, wheelchairs and foot traffic. It is standard in hospitals and clinics, and increasingly specified in schools, airports, hotels, malls and car parks wherever repair and repaint costs are high.
Which wall guard should I specify for a hospital corridor in the UAE?
A typical UAE hospital corridor uses a vinyl crash rail at bed-bumper height (often a stacked pair on bed-transfer routes), a graspable handrail for patients, high-impact corner guards on every exposed corner and rigid vinyl sheet in splash or high-contact zones. Service corridors, kitchens and CSSD usually switch to stainless steel wall guards. Send us the corridor widths and traffic type and we will recommend models and mounting heights.
Vinyl or stainless steel — how do I choose?
Vinyl systems offer the widest colour and woodgrain choice, are quieter on impact and suit patient- and public-facing areas. Stainless steel (grade 304, satin finish) takes the hardest knocks and tolerates aggressive cleaning, so it is the default for back-of-house, loading areas and airports. Many projects combine both: vinyl front-of-house, stainless behind the scenes.
Are Inpro / IPC products fire-rated and suitable for healthcare cleaning regimes?
Inpro rigid vinyl covers and sheets are Class A to ASTM E-84 / UL 723, with EN 13501-1 classifications on the European range, and are cleaned with standard hospital disinfectants without discolouring. Model-specific fire, chemical-resistance and impact data are provided in the technical data sheets we issue on request, together with any authority-approval documents your submittal needs.
Do you supply and install wall protection in Dubai and the Northern Emirates, or only Abu Dhabi?
Bluedge is based in Abu Dhabi and supplies and installs across all seven emirates, including Dubai, Sharjah, Ajman, Ras Al Khaimah and Fujairah, as well as selected GCC projects. We offer supply-only, supply and install, or supply with installation supervision for your own contractor.
Can colours and wood finishes be matched to the interior design scheme?
Yes. Inpro / IPC systems come in an extensive palette of solid colours and woodgrains, and the same colour runs across wall guards, corner guards, handrails and sheet trims so the package reads as one design. Physical samples are available from Bluedge for sign-off before ordering.
How do I get technical data sheets, specification clauses and CAD details?
Use the enquiry builder on this page or email bluedge@emirates.net.ae with the project name, your role and the products of interest. We issue metric TDS, specification clauses, CAD details and installation method statements to specifiers, consultants and contractors working on UAE projects.
What information do you need for a quotation?
Project name and location, the areas to protect (with lengths or drawings if available), the systems or models you have in mind, whether you need supply-only or supply and install, and your required date. A corridor schedule or marked-up plan is ideal; if you do not have one yet, we can measure on site.
