Built for bumpers, not bags.
Vehicles, pallet trucks and roll cages hit harder than anything in a corridor. For car parks, loading docks, warehouses and back-of-house routes we specify Inpro's heavy-duty rubber range — Santoprene wall fenders and column corner guards that absorb the impact and shrug off diesel, water and sun — alongside stainless steel column covers and crash rails. Supplied and installed across the UAE by Bluedge.
Car park column protection
Fenders for walls, guards for columns
Two rubber wall-fender profiles, a heavy-duty rubber corner guard, a flexible corner guard for lighter duty, and the metal options we pair them with. Click a product for its specification.
- 203 mm face · 32 mm deep
- 3.05 m lengths
- Interior and exterior
E-Fender Rubber Wall Guard — 203 mm
A 203 mm high, 32 mm deep Santoprene rubber fender for car park walls, ramps and loading bays.
- 71 mm face · 76 mm deep
- 3.05 m lengths
- Docks and bay walls
D-Fender Rubber Wall Guard — 71 mm
A 71 mm D-profile rubber fender, 76 mm deep, for dock edges, bollard lines and low walls.
- High-impact Santoprene
- Car park columns, docks
- Interior and exterior
Heavy-Duty Rubber Corner Guard
Moulded high-impact Santoprene for car park columns, dock corners and plant-room walls.
- 19 or 38 mm wings · 90° / 135°
- ±10° adjustment
- Adhesive-fixed
Flexible Corner Guard — 19 / 38 mm
An adhesive-fixed flexible vinyl corner guard for trolley and pedestrian impact in back-of-house areas.
- 305 or 406 mm diameter
- 20 gauge, up to 1.22 m
- Adhesive or rivet fixing
Stainless Steel Column Covers
Snap-lock 20-gauge stainless covers for round columns in lobbies, car parks and service areas.
- Up to 1.2 × 3 m
- 18 ga stainless or 1.6 mm aluminium
- Tapered corner pieces
Diamond Plate Wall Panels — stainless or aluminium
Diamond plate panels up to 1.2 × 3 m with tapered corner pieces for loading and service walls.

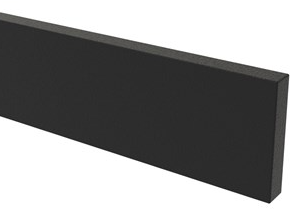

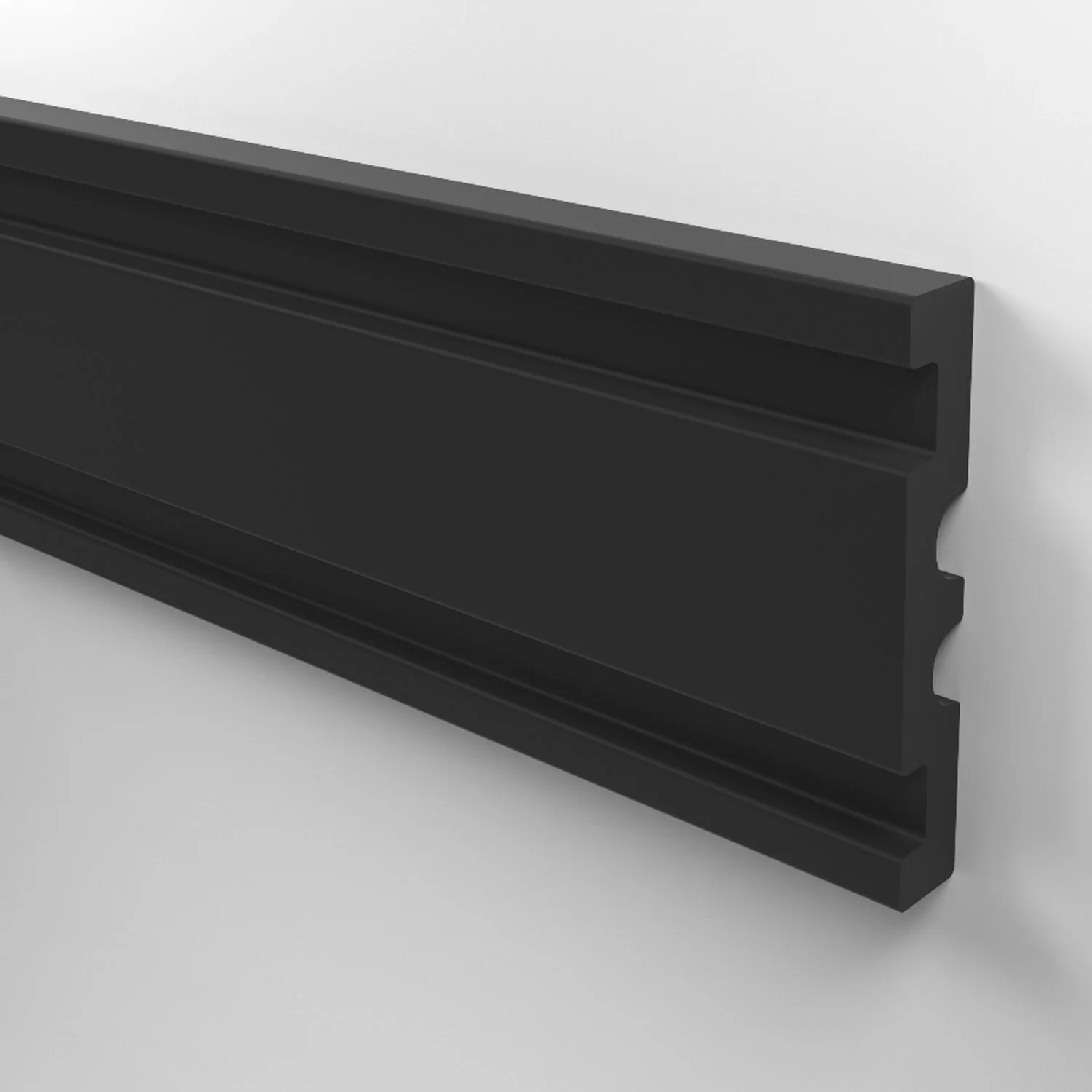

E-Fender Rubber Wall Guard — 203 mm
The E-Fender is the wall protection for parking structures: a 203 mm (8") face of Santoprene rubber, 32 mm deep, in 3.05 m lengths, fixed to concrete or blockwork. Interior or exterior, black, with up to 25% pre-consumer recycled content.
Product details
- E-Fender profile: 203 mm (8") height, 32 mm (1.25") depth
- Santoprene rubber; colour black
- Manufactured in 3.05 m (10') standard lengths
- Suitable for interior and exterior applications
- Contains up to 25% pre-consumer recycled content
Options & finishes
- Black
Testing & certification

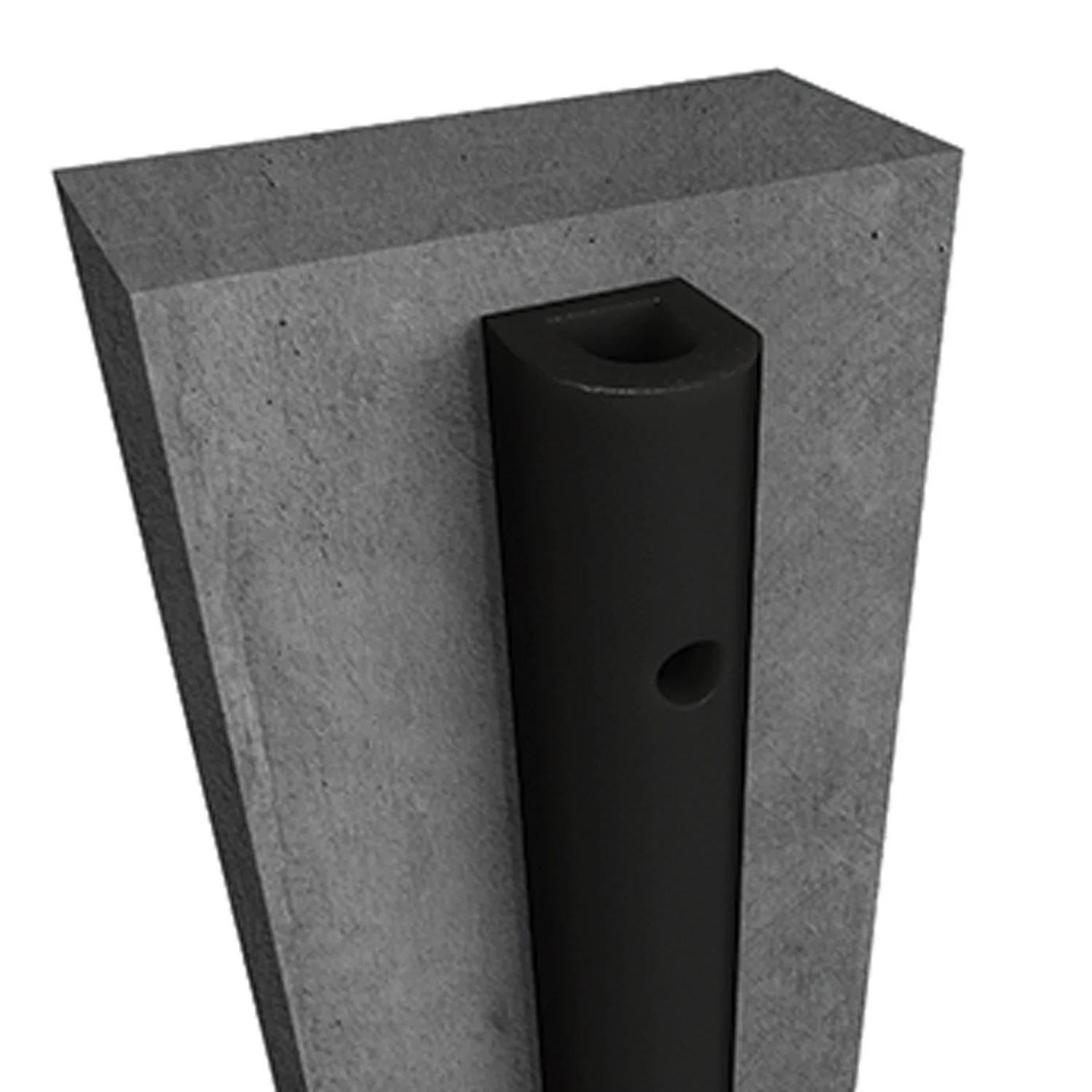

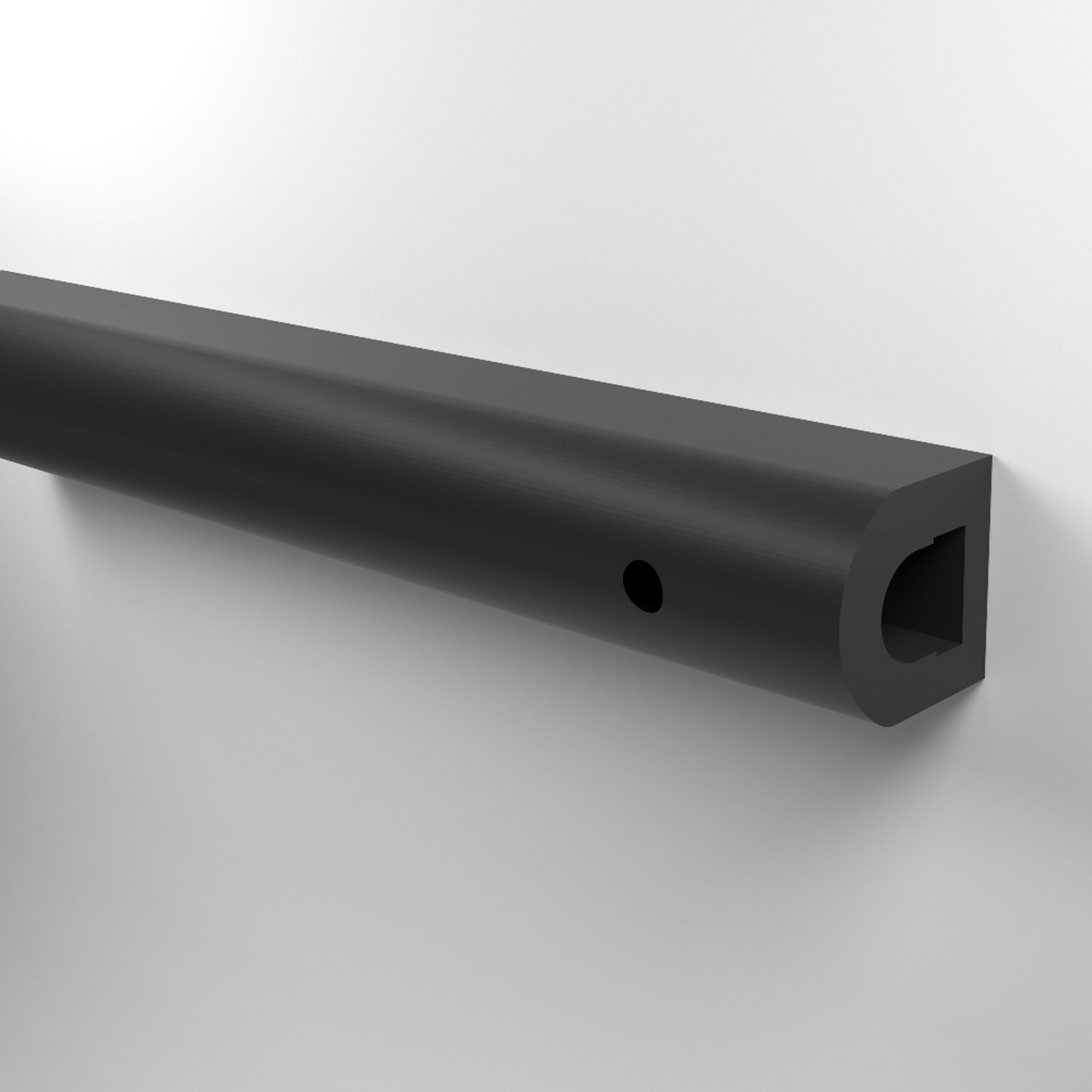

D-Fender Rubber Wall Guard — 71 mm
The D-Fender is the compact profile — 71 mm (2.8") high and 76 mm deep — for loading-dock edges, bay walls, bollard lines and plant-room walls where a deep bumper is needed in a narrow band. Same Santoprene, same 3.05 m lengths, interior or exterior.
Product details
- D-Fender profile: 71 mm (2.8") height, 76 mm (3") depth
- Santoprene rubber; colour black
- Manufactured in 3.05 m (10') standard lengths
- Suitable for interior and exterior applications
- Contains up to 25% pre-consumer recycled content
Options & finishes
- Black
Testing & certification

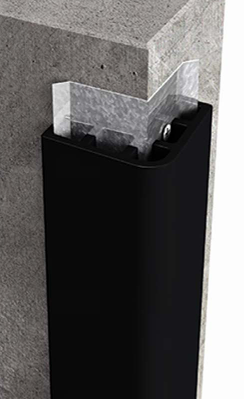

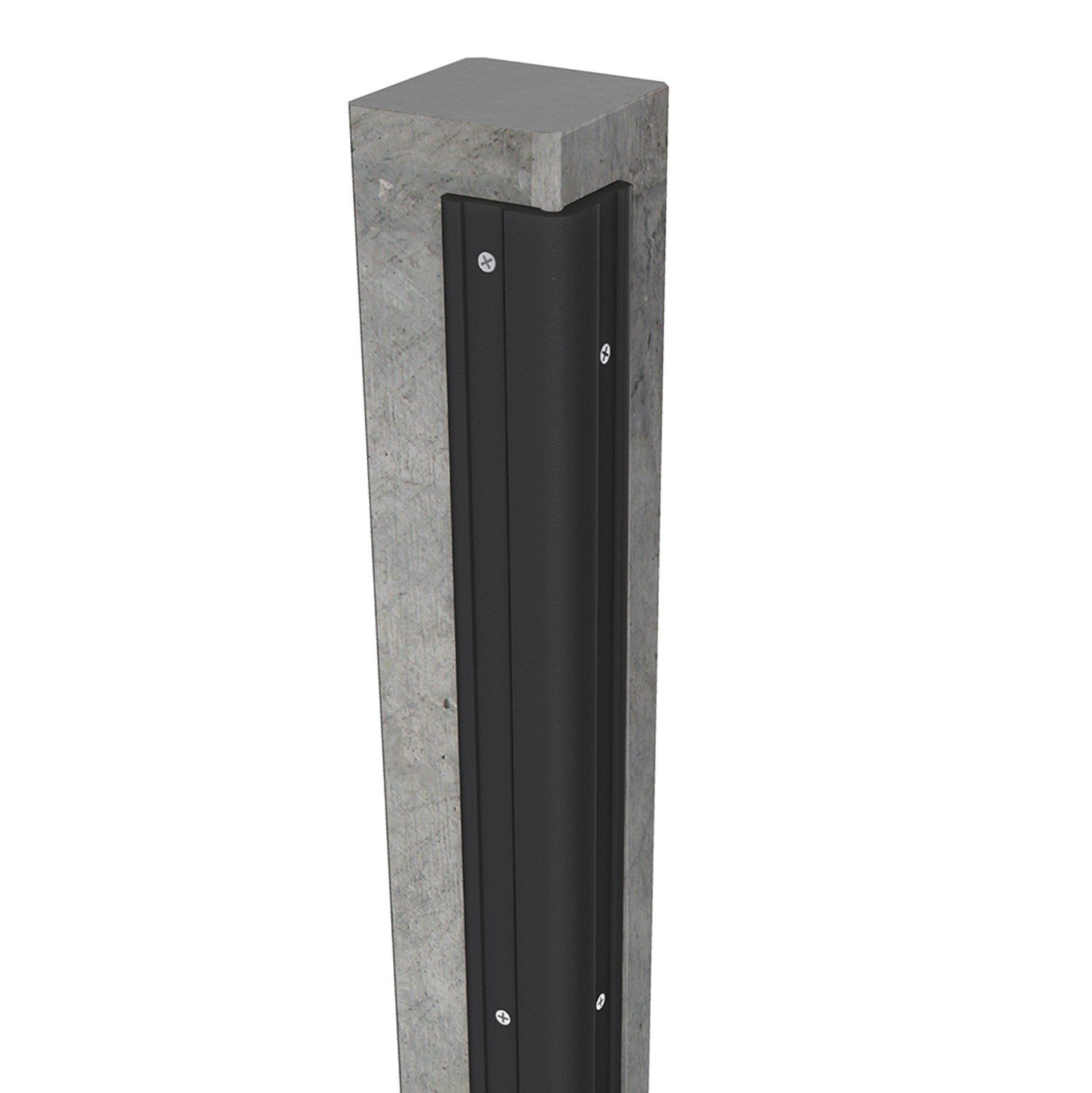

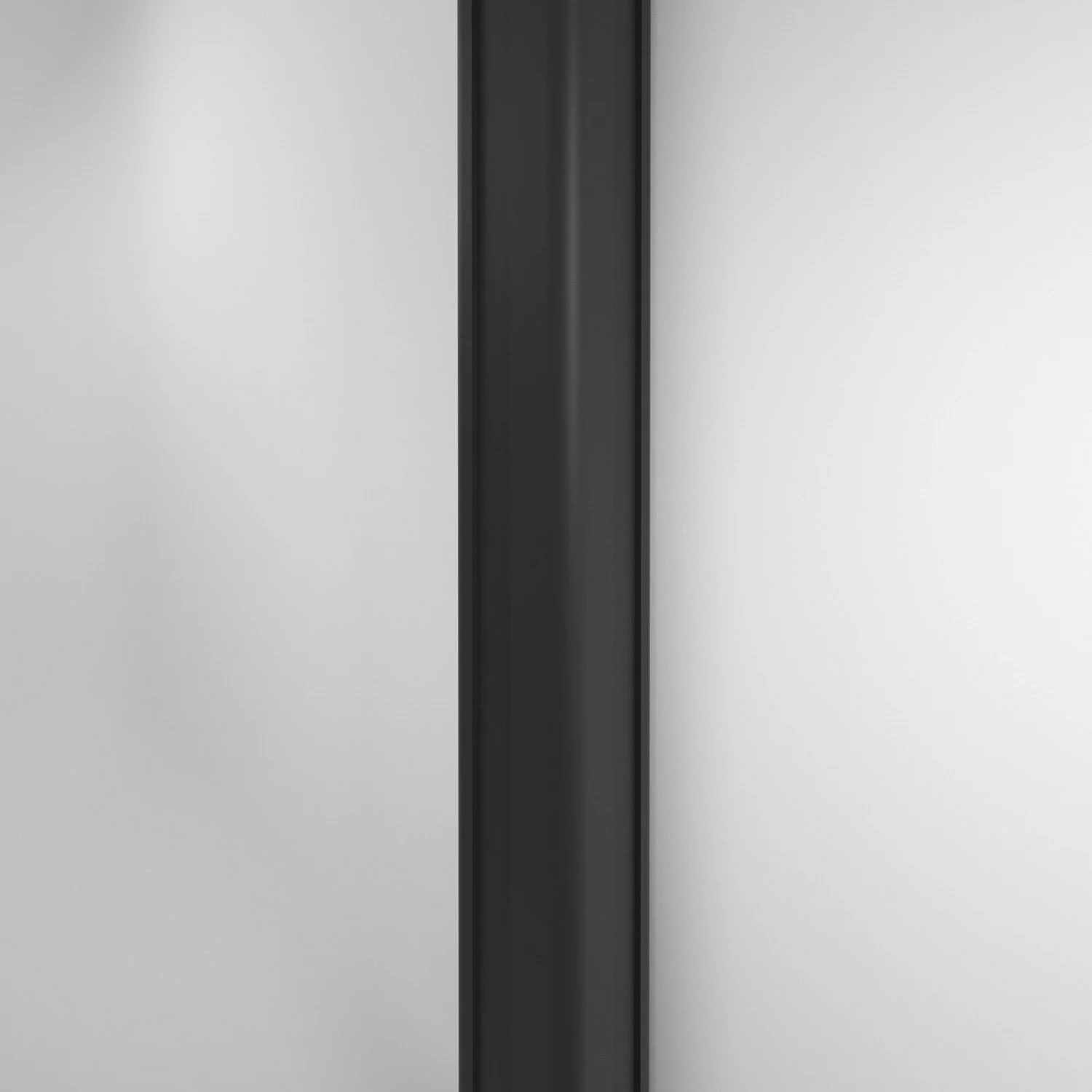

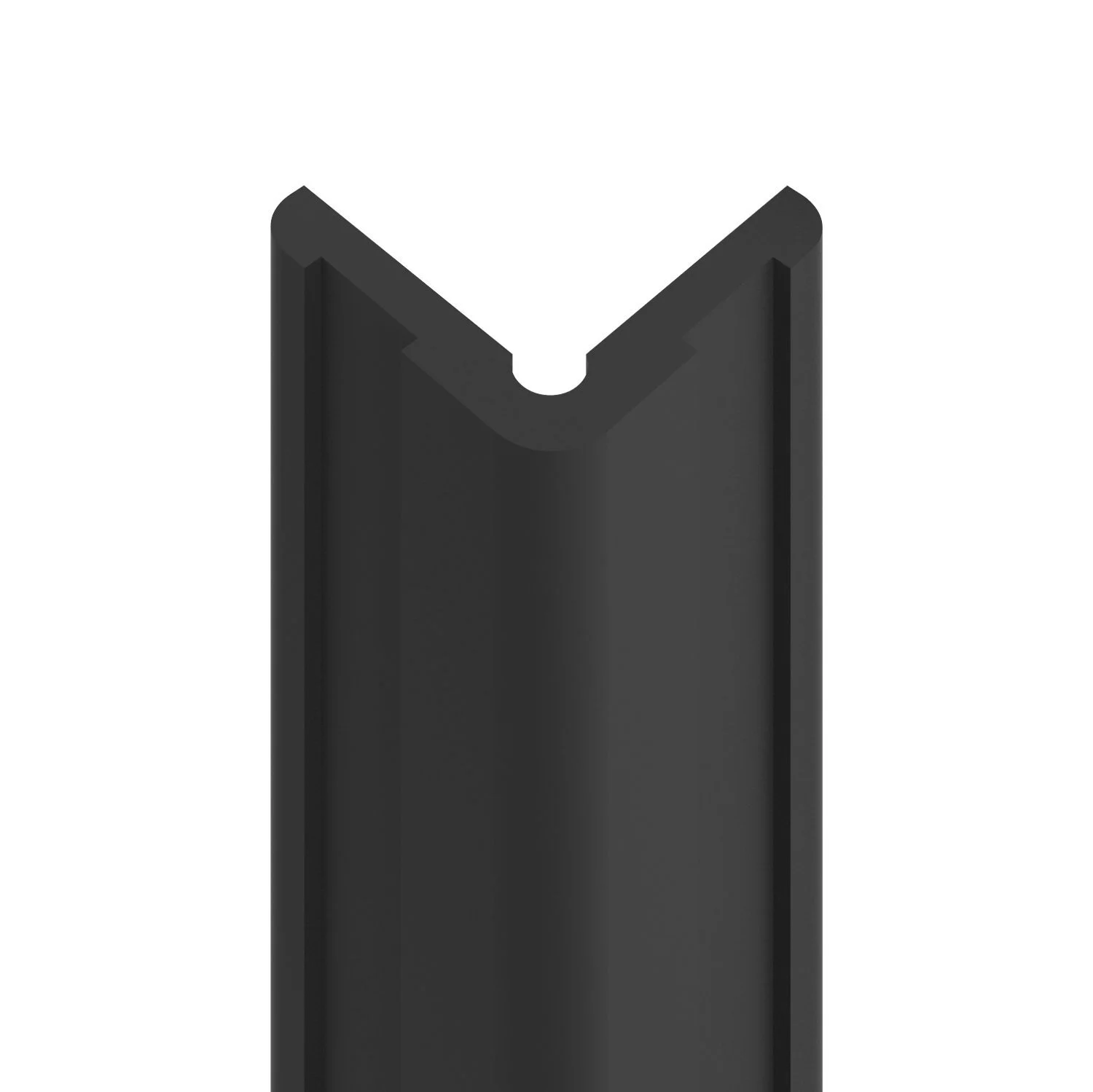

Heavy-Duty Rubber Corner Guard
Columns are where cars meet concrete. The heavy-duty rubber corner guard is moulded in high-impact Santoprene, mechanically fixed to the column corner, and takes repeated vehicle contact without cracking, fading or marking paintwork the way steel does.
Product details
- Moulded high-impact Santoprene rubber corner guard
- For car park columns, loading docks, warehouses and plant rooms
- Mechanically fixed to concrete or blockwork
- Suitable for interior and exterior use; colour black
Options & finishes
- Black
Testing & certification

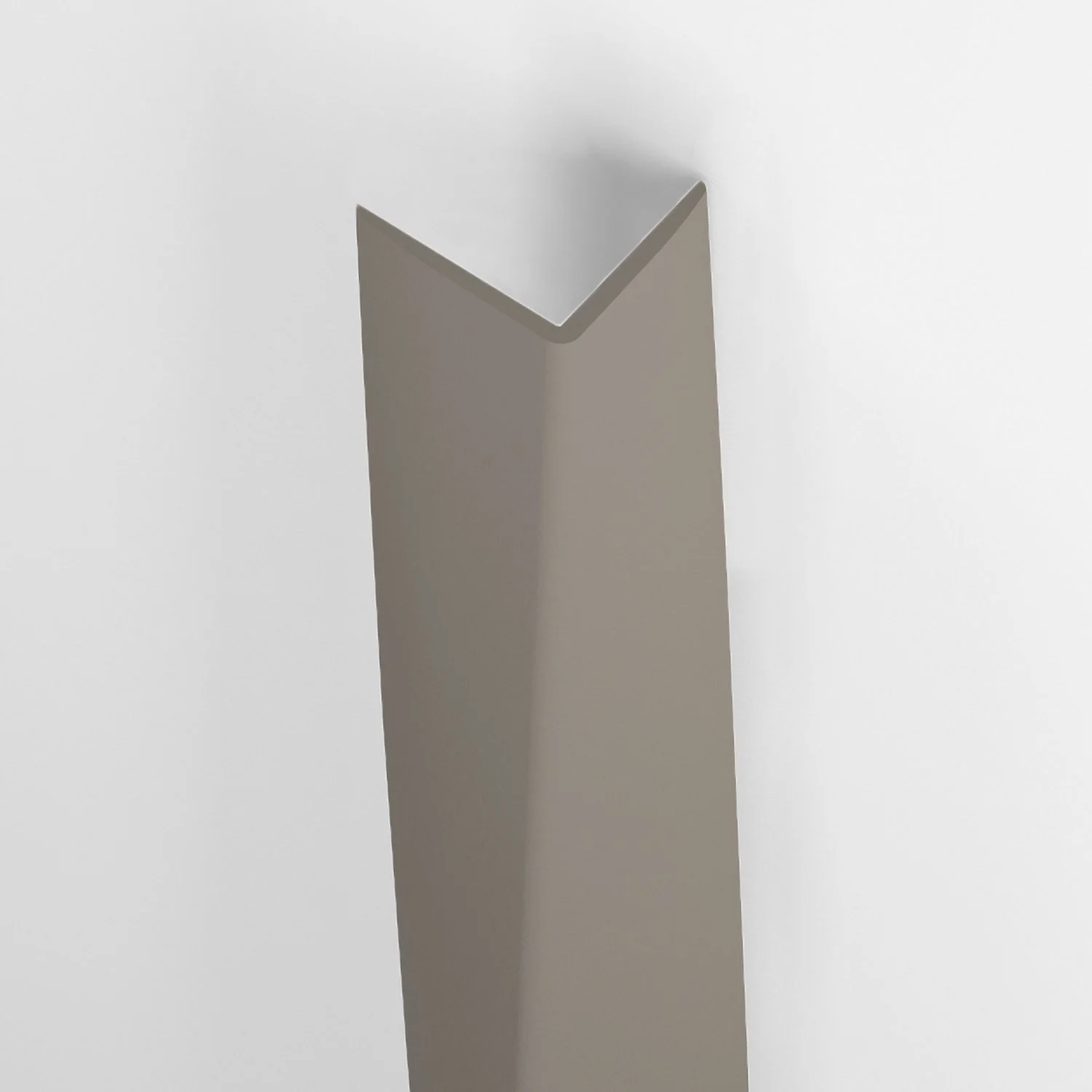

Flexible Corner Guard — 19 / 38 mm
For store rooms, service corridors and staff areas where the impact is trolleys and people rather than vehicles, the flexible corner guard — Biopolymer Flex PVC, 2.8 mm, ±10° adjustment — is a quick adhesive-fixed answer in any Inpro solid colour.
Product details
- 19 mm (¾") or 38 mm (1½") wings in 90° and 135° styles
- Biopolymer Flex PVC, 2.8 mm (0.110") thick; smooth satin finish
- Allows ±10° adjustment to out-of-square corners
- Standard heights 1.22 m, 2.44 m, 2.74 m and 3.66 m
- Installed with heavy-duty adhesive
Options & finishes
- All standard Inpro solid colours
Testing & certification

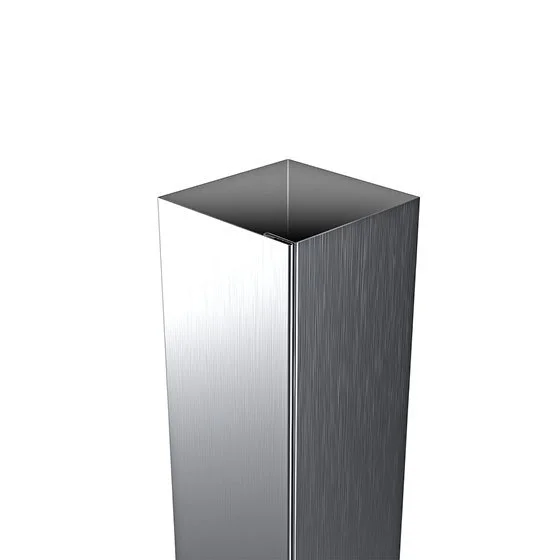

Stainless Steel Column Covers
Where the column should look finished rather than fendered — hotel and mall car park entrances, lobbies, service lifts — a snap-lock stainless column cover in 305 mm or 406 mm diameter, up to 1.22 m high, gives protection and polish together.
Product details
- 20-gauge stainless steel column cover; custom sizes
- Available in 305 mm (12") or 406 mm (16") diameter
- Maximum height 1.22 m (48"); full or partial-height covers
- Installed with supplied adhesive or rivets
Options & finishes
- No. 4 satin finish
Testing & certification

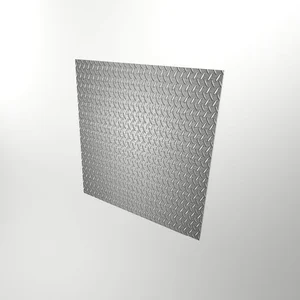

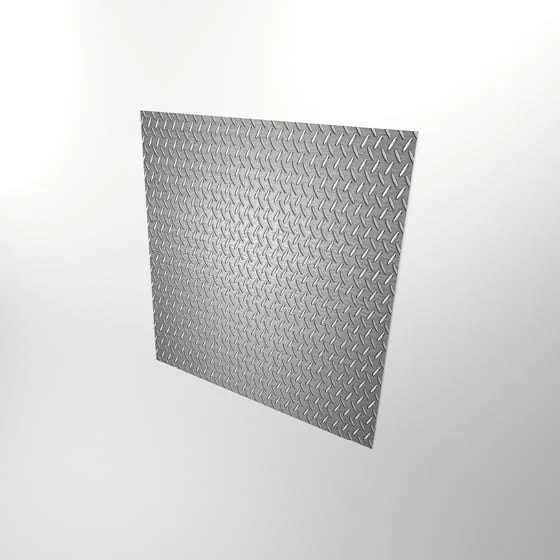

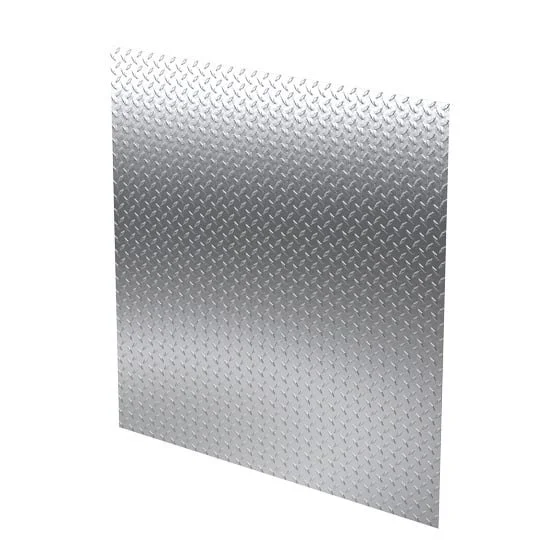

Diamond Plate Wall Panels — stainless or aluminium
For loading-dock walls, waste rooms and plant corridors, diamond plate panels give a full-wall metal finish: 18-gauge Type 304 stainless or 1.6 mm 3003 aluminium, with tapered-edge corner pieces (51 mm wings) for a smooth transition.
Product details
- Stainless: maximum 1.2 × 3 m, 18 gauge (1.3 mm) SAE 304
- Aluminium: 1.2 × 2.4 m and 1.2 × 3 m, 1.6 mm type 3003-H22/H24
- Tapered edge on corner pieces; 51 mm wings; adhesive mount
Options & finishes
- Stainless steel or aluminium diamond pattern
Testing & certification
Car park and dock protection in the UAE
Heat, dust and vehicle traffic decide the material.

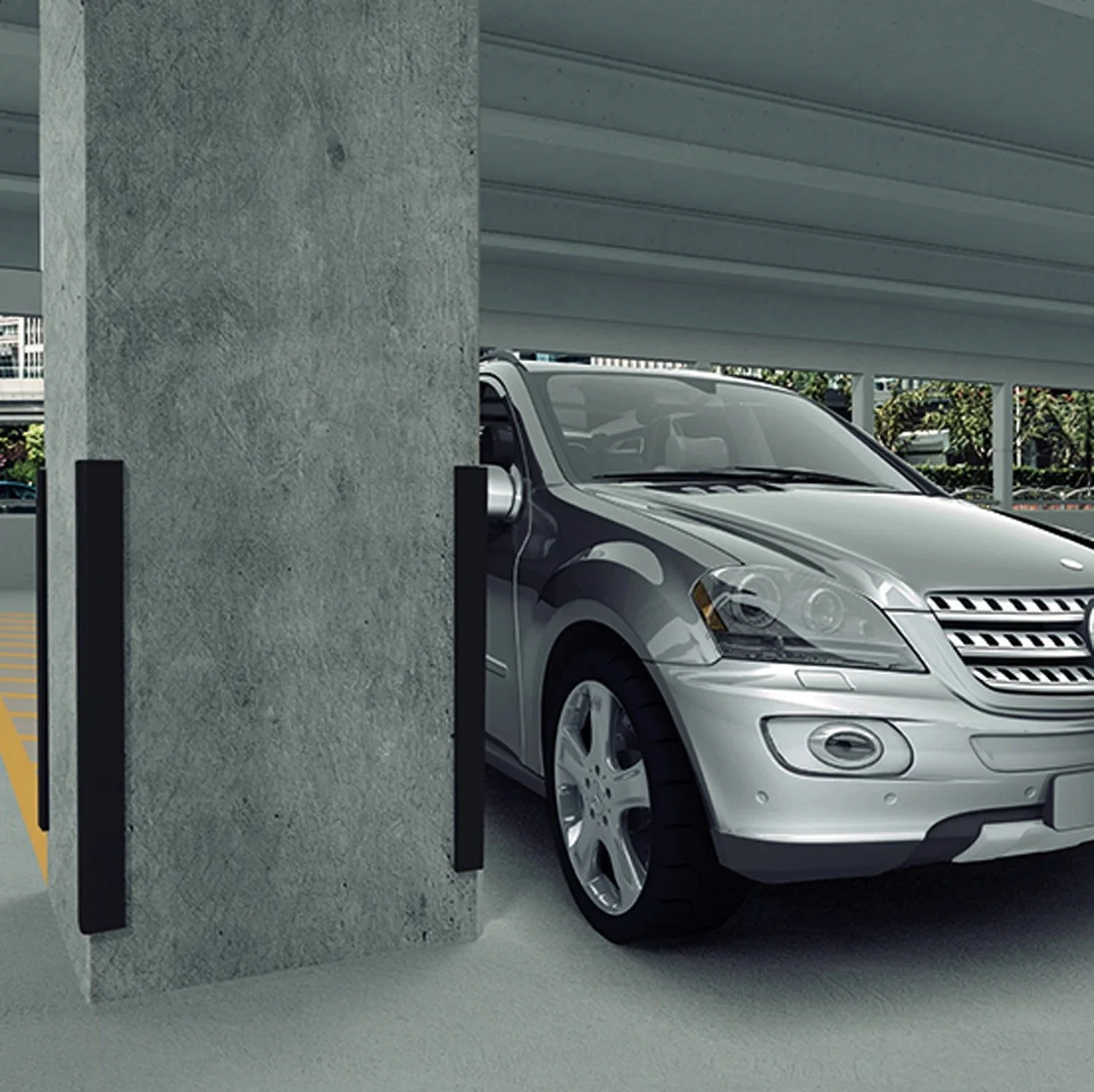

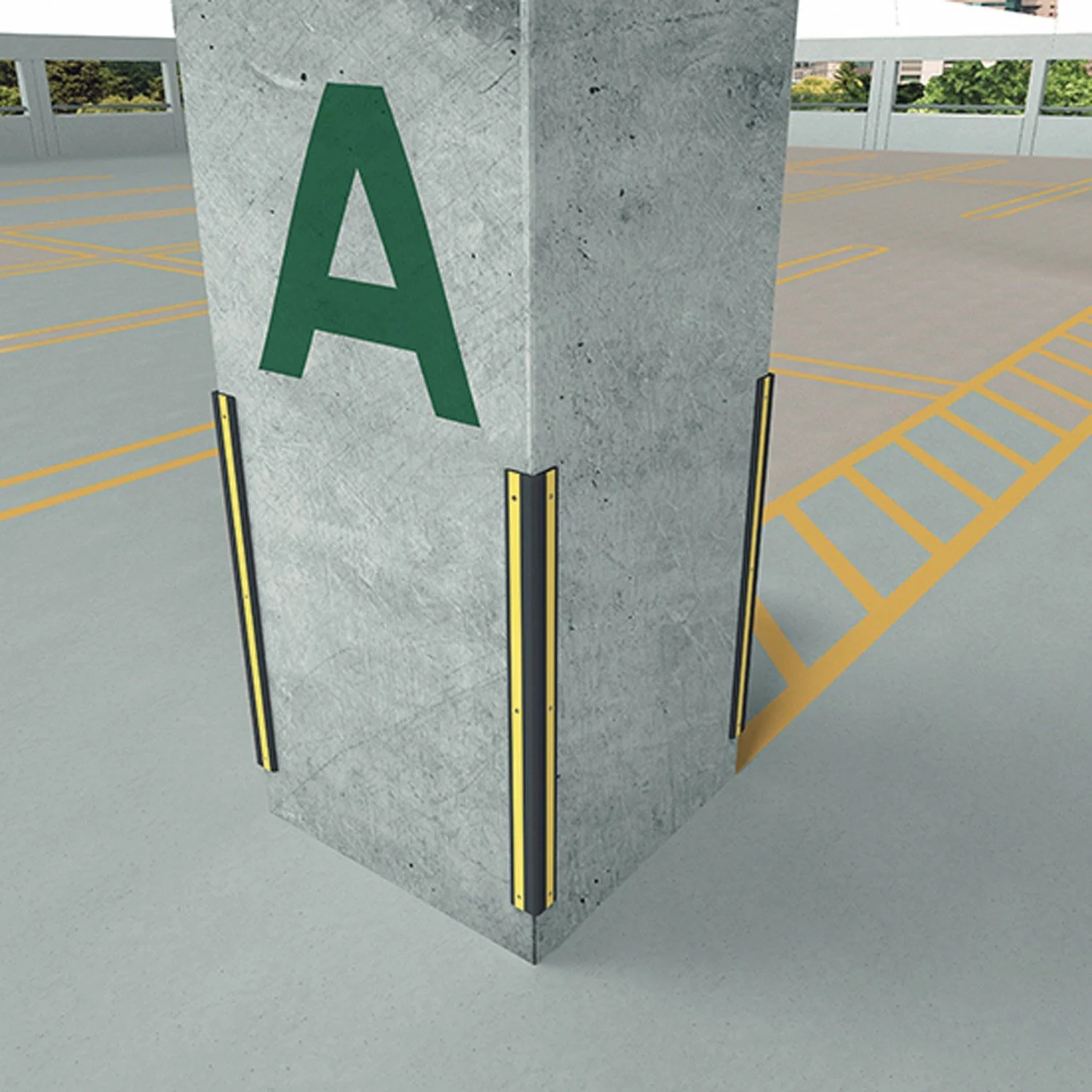

Rubber on every column in the drive aisle
Heavy-duty rubber corner guards on the drive-aisle face of each column and E-Fender rubber along the end walls of bays — black rubber marks nothing and survives the UAE summer in open-sided structures.
- HD Rubber
- DW-WALL200
- Exterior-rated
D-Fenders on the bay walls, diamond plate behind

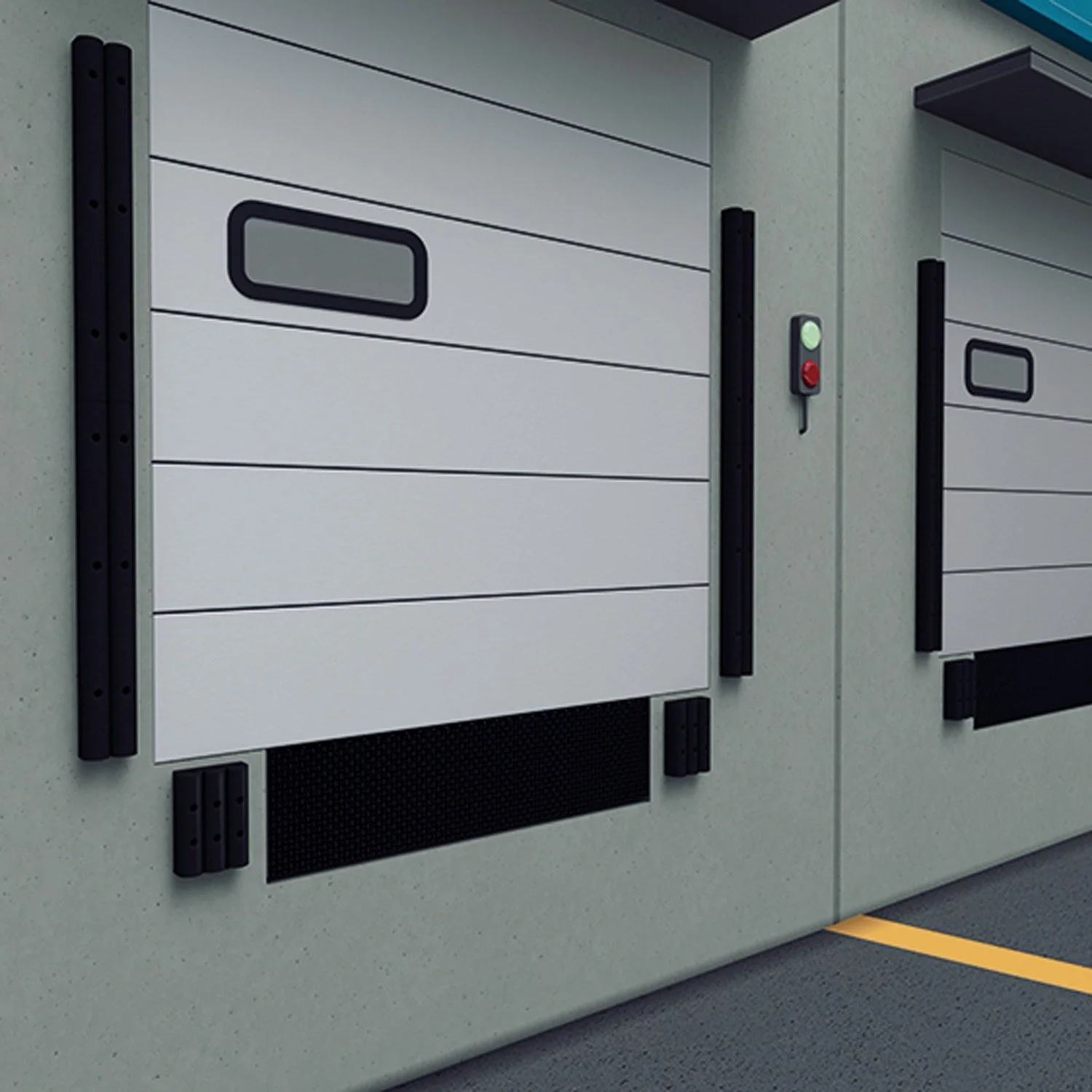

Dock bays get the D-Fender along the wall at bumper height, diamond plate on the walls that pallet trucks scrape, and stainless or 50AA aluminium rails on the service corridor beyond.
- DW-DOCK075
- Diamond plate
- 50AA
Stainless where it needs to look finished
Hotel and mall service areas that guests glimpse — car park lobbies, service lift halls — move to stainless column covers and stainless steel wall guards, matched to the stainless corner guards in the kitchens.
- SS column covers
- Stainless wall guards
Compare the heavy-duty options
Rubber, stainless and aluminium systems for vehicle and pallet-truck impact.
| System | Impact | Material | Size | Use | Environment |
|---|---|---|---|---|---|
| DW-WALL200 E-Fender | Vehicle | Santoprene rubber | 203 mm × 32 mm · 3.05 m | Car park walls, ramps, bays | Interior / exterior |
| DW-DOCK075 D-Fender | Vehicle | Santoprene rubber | 71 mm × 76 mm · 3.05 m | Dock edges, low walls | Interior / exterior |
| HD rubber corner guard | Vehicle | High-impact Santoprene | Column profile | Car park and dock columns | Interior / exterior |
| Stainless column cover | Trolley | 20 ga stainless | 305 / 406 mm dia · to 1.22 m | Lobbies, service halls | Interior |
| Diamond plate | Pallet truck | Stainless or aluminium | Up to 1.2 × 3 m | Dock and plant walls | Interior |
| Flexible corner guard | Trolley | Flexible vinyl | 19 / 38 mm wings | Store rooms, staff areas | Interior |
| 50SSH / 56SSH stainless rail | Trolley / cart | Type 304 stainless | 102 / 152 mm faces | Service corridors | Interior |
Rubber products are black Santoprene with up to 25% recycled content; tensile, elongation and hardness tested to ASTM D412 / D2240. Data sheets are available from Bluedge on request.
Count the columns — we'll quote the structure.
Number of columns, drive-aisle widths, dock bay lengths and whether the structure is open-sided are all we need to return a priced package.
- Data sheets for rubber, stainless and aluminium systems
- Column and wall schedule from your drawings
- Fixing details for concrete and blockwork
- Exterior suitability and UV performance notes
- Phased installation in operating car parks
- Installation by Bluedge teams or supply only
Rubber & car park protection — common questions
What UAE facilities teams, developers and contractors ask before they specify.
Which rubber guard should I use on car park columns?
The heavy-duty rubber corner guard in high-impact Santoprene, mechanically fixed to the drive-aisle corners of each column, usually from 300 mm to about 1.2 m above the slab. Along end walls and ramps, the DW-WALL200 E-Fender at bumper height.
Are the rubber guards suitable for open-sided car parks in the UAE climate?
Yes. The Santoprene fenders and corner guards are rated for interior and exterior use and are specified in open-sided and rooftop parking structures; black rubber does not fade the way painted steel does and does not mark vehicles.
What is the difference between the D-Fender and the E-Fender?
The D-Fender (DW-DOCK075) is a compact 71 mm profile, 76 mm deep, for dock edges and low walls. The E-Fender (DW-WALL200) is a 203 mm face, 32 mm deep, covering the whole bumper zone on car park walls and ramps. Both come in 3.05 m lengths.
Do you have metal options for service areas that guests can see?

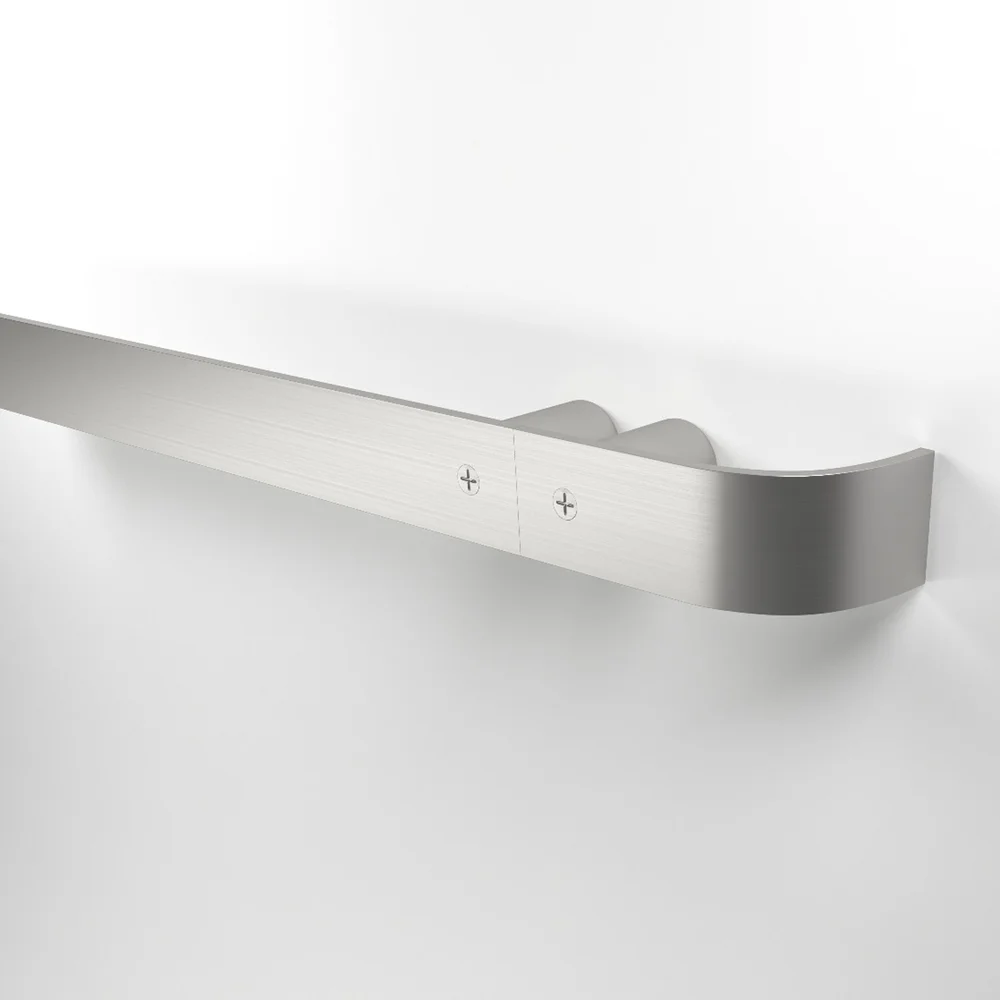

Yes — snap-lock stainless steel column covers (305 or 406 mm diameter), stainless and aluminium diamond plate panels, and the stainless steel wall guard range (50SSH, 56SSH, 51SS, 52SS) for service corridors and lift lobbies.
How are the guards fixed to concrete columns?
With mechanical anchors into the concrete or blockwork; Bluedge supplies the fixing details and installs with its own teams. Phased installation in an operating car park is normal — we work bay by bay.
Do you supply car park protection in Dubai and the Northern Emirates?
Bluedge is based in Abu Dhabi and supplies and installs across all seven emirates, with selected GCC projects. Supply-only, supply and install, or supply with installation supervision are all available.
